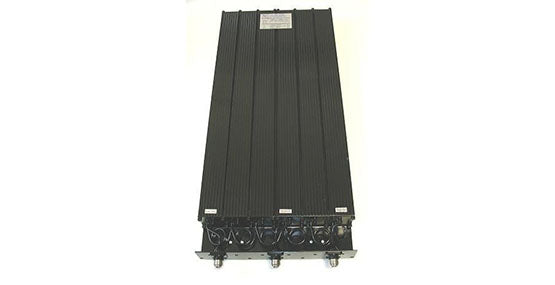

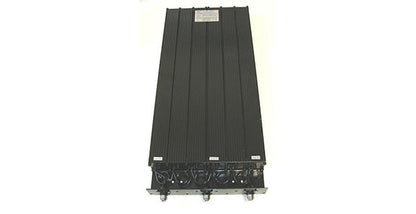

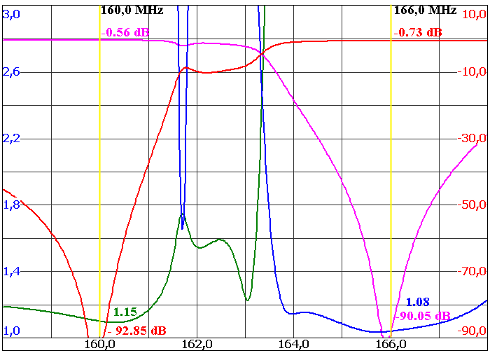

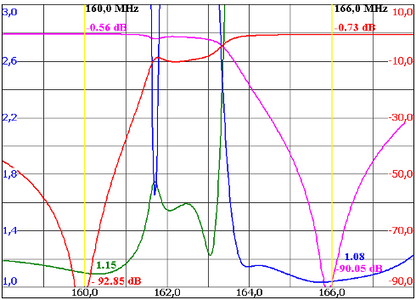

BCD-150150 VHF Duplexer

The BCD-150150 utilizes six high-Q notch-type coaxial resonators with 2"-cross-section that results in small geometry advantages without compromising duplex isolation. The resonators are made of extruded aluminum passivated inside and outside with the galvanized steel chassis and Teflon insulation has been applied in the coaxial cables and in the connectors.

Minimum Frequency Separation: 1.5MHz

Frequency Spacing: 1-2; 2-4; 4-6; 6-8; 8-10

Frequency Range: 140-156; 154-175 MHz

Max Input Power: 150W

Insertion loss RX-ANT, dB: < 1.5

Insertion loss ANT-RX, dB: < 1.5

RX isolation ANT-RX, dB: > 80

TX noise suppression TX-ANT, dB: > 80

Impedance, Ohms: 50

VSWR: < 1:1.5

Connectors: N-female

Temperature range, °C: -30°...+60°

Dimensions (HxWxL), mm: 55 x 252 x 630

Weight, kg: < 5.0
