BDR-1550 (VHF) Analog/NXDN Repeater

Name: BDR-1550 (VHF) Analog/NXDN Repeater
Brand: BridgeCom Systems, LLC
SKU: 16-091-03
Price: 2499.99 USD
Availability: InStock

Professional Part 90–Compliant Repeater with Slim 1U Rack Design and IP Connectivity

The BDR-1550 (VHF) is a professional-grade Analog/NXDN repeater built for organizations that require reliable, flexible, and network-ready communications. Its slim 1U rack-mount design conserves rack space while delivering dependable performance, long-term durability, and modern IP connectivity.

Designed to support digital NXDN systems, legacy analog operations, or IP-linked repeater networks, the BDR-1550 ensures clear audio, consistent uptime, and full compliance with FCC Part 90 standards.

Built for Professional NXDN Networks

The BDR-1550 delivers clear audio, stable operation, and seamless multi-mode performance with integrated IP connectivity. Whether you’re deploying a digital NXDN network, maintaining an analog system, or linking repeaters over IP, it provides the reliability, interoperability, and flexibility required for professional communications environments.

Technical Overview

Frequency Band: VHF
Operating Modes: Analog / NXDN
Compliance: FCC Part 90, Part 15
Form Factor: Slim 1U rack mount
Power: AC primary with DC battery backup support
Audio Monitoring: Built-in front-panel speaker
Controls: Keypad with digital display
Accessory Interface: Standard 25-pin female connector
Connectivity: IP-enabled for network linking

Technical Specifications

Parameter	Specification
Model	BDR-1550
Frequency Range	136-174MHz
Channels	500
Zones Bandwidth	32 6.25kHz12.5kHz / 25kHz
Power Output	Low 5W, Medium Low 10W, Medium High 30W, High 50W
Operating Voltage	100/240VAC (with 13.8VDC backup)
Audio Output	Internal 2W 8 Ω speaker
Connectors	Type N Female, 25-pin accessory
Control Interface	Front panel keypad, PC software
Tone Options	CTCSS, DCS, CWID PC programmable
Form Factor	1U 19” rackmount, (L×W×H): 19” × 14” × 1.75
Cooling	Internal fan
Certifications	FCC Part 90, Part 15

What’s Included!

BridgeCom Systems BDR-1550 Repeater
Standard hand microphone
A/C and D/C Power cables
User manual
2-Year manufacturer warranty
Access to BridgeCom technical support

Why Choose It?

🏭 Built for Professional Performance

The BDR-1550 delivers crystal-clear audio, exceptional reliability, and flexible digital compatibility, making it the ideal solution for commercial users, utilities, public safety, and system integrators who demand dependable, high-quality communication infrastructure.

Upgrade your system today with the BridgeCom Systems BDR-1550 (VHF) — the compact repeater built for maximum performance in minimal space.

Key Features

🔊 Built-In Internal Speaker
Convenient local audio monitoring directly from the repeater’s front panel.

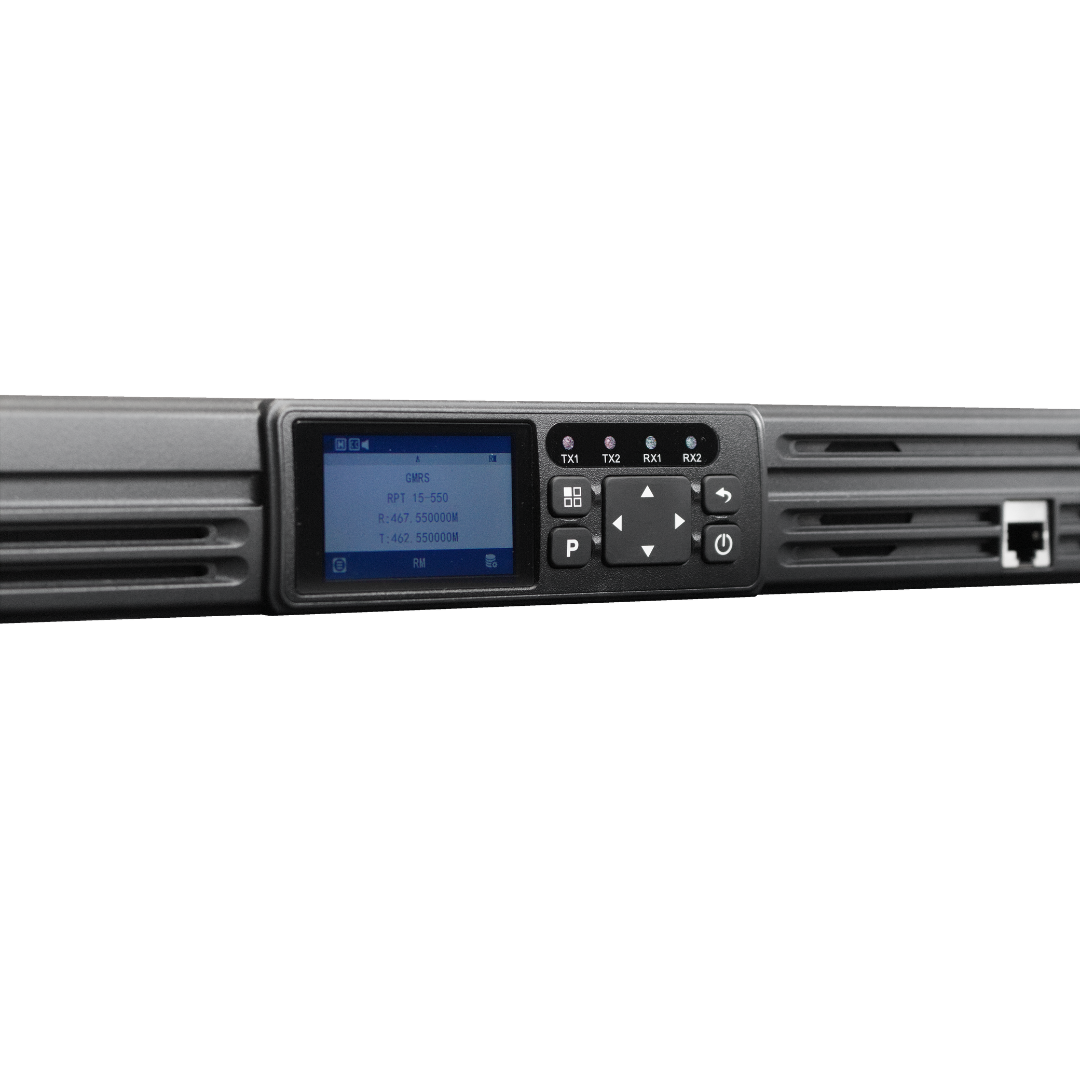

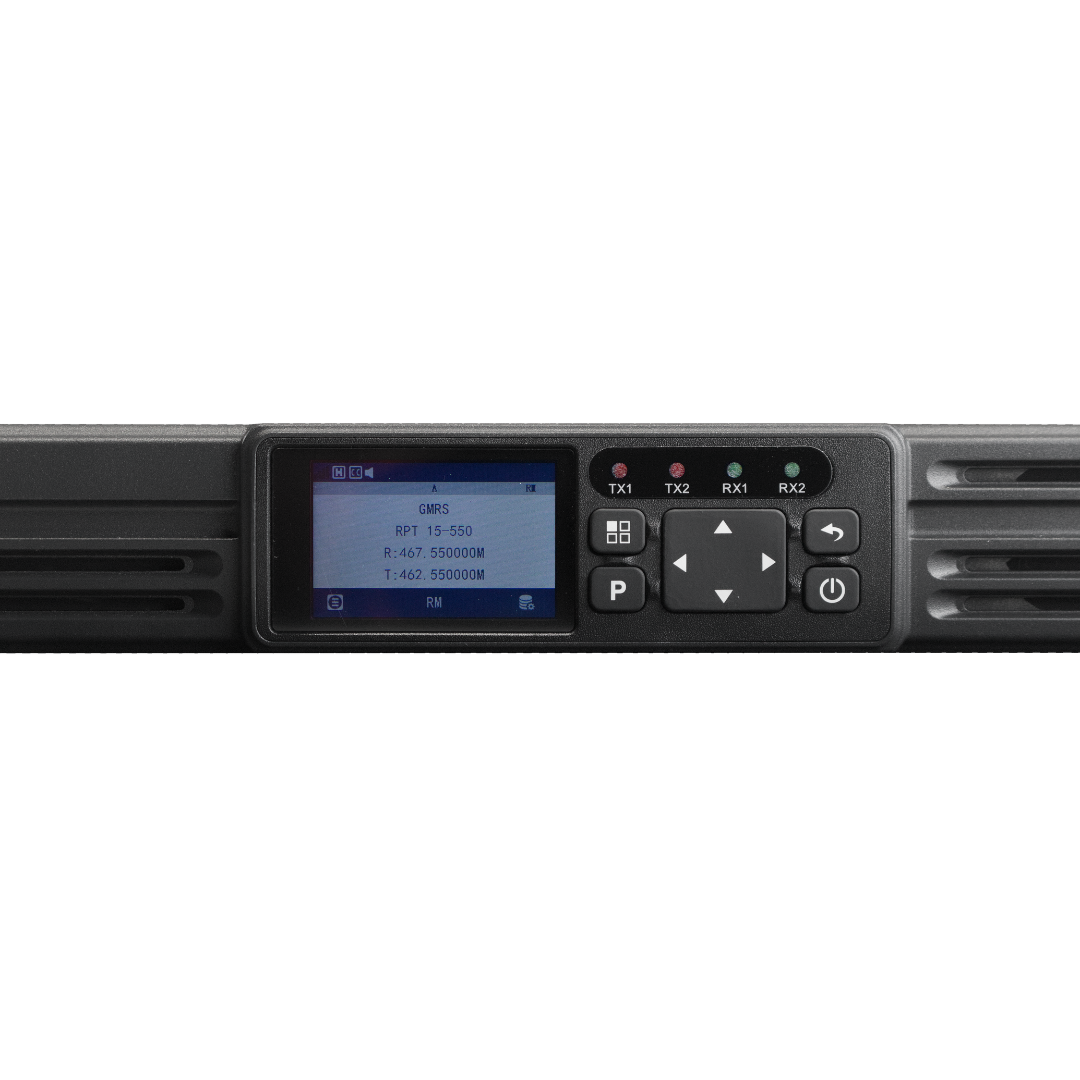

⌨️ Front Panel Keypad Controls
Intuitive keypad and display for quick access to channel selection, volume, power output, and display setup.
🎙️ Standard Microphone Included
Perform direct transmit operations and on-site testing with the included standard microphone, compatible with all three modes.
⚡ A/C Power with D/C Battery Backup
Ensures continuous operation with automatic failover to DC battery backup during power interruptions.

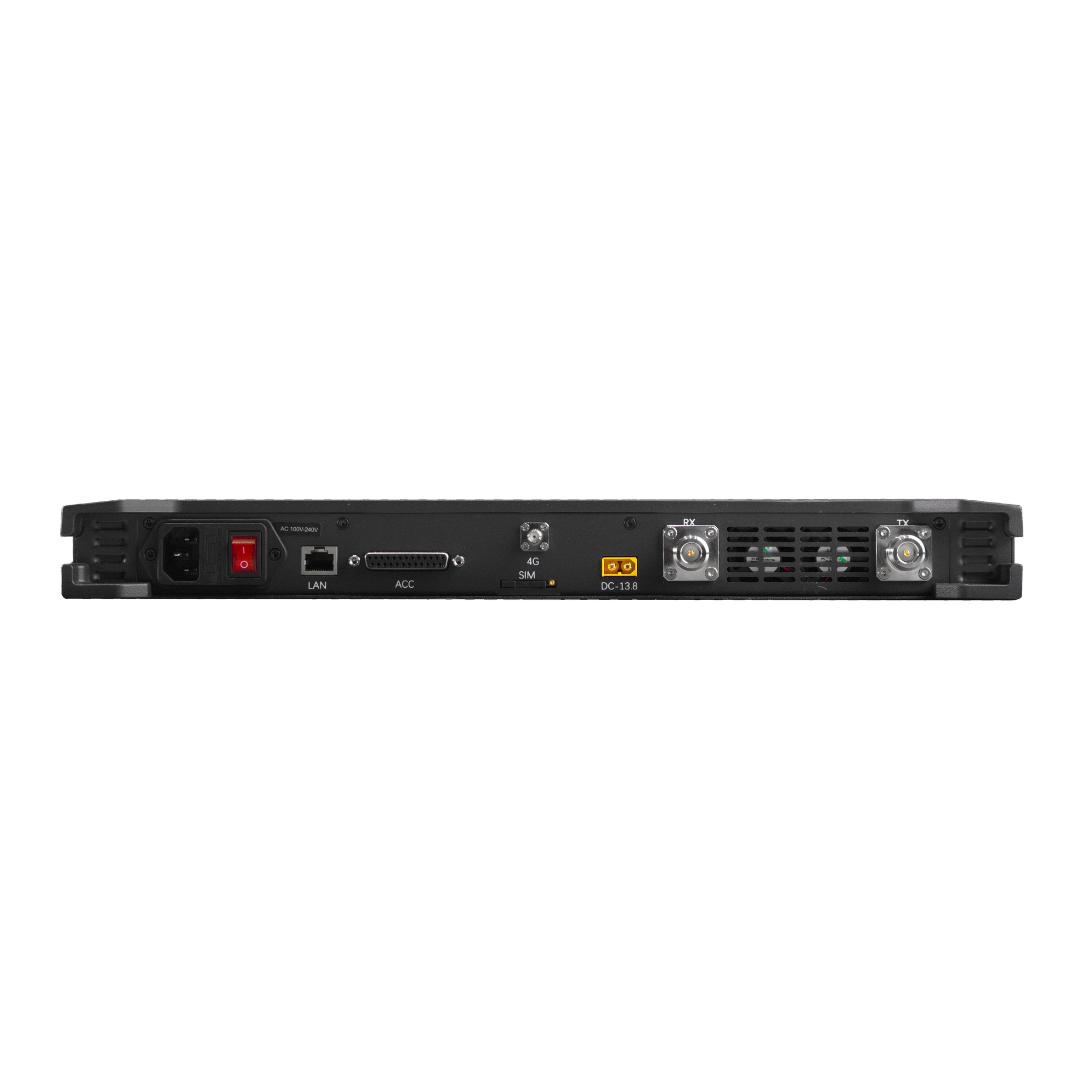

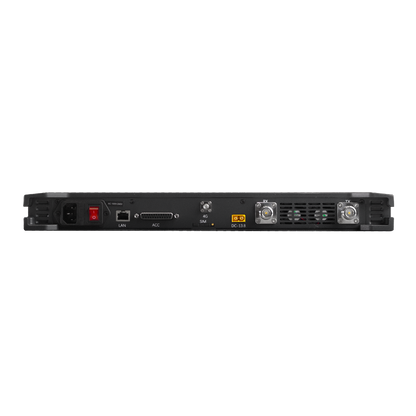

🔌 25-Pin Female Accessory Connector
Easily integrates with external controllers, linking systems, or third-party accessories for versatile setups.
🌐 IP Connectivity
Supports IP-based linking and network integration, enabling remote access, system monitoring, and connection to multi-site repeater networks over local or wide-area IP networks.
