VHF Analog & DMR Radio Repeater System | BridgeCom BDR-1550

The BridgeCom BDR-1550 is a 50W, FCC Part 90-certified repeater housed in a compact 1U rack-mount chassis. Built for VHF commercial systems and 2m amateur radio deployment, each channel can be individually configured for dedicated Analog or DMR digital operation. Integrated IP networking supports multi-site DMR linking and Homebrew protocols for easy connection to amateur networks like BrandMeister or TGIF, giving you expandable digital coverage while conserving rack space.

Technical Overview

Frequency Range: VHF 136-174 MHz (2m / Commercial)
RF Power: 50W Max (4 power settings)
Operating Modes: Channel-configurable Analog or DMR (Dedicated per channel)
Compliance: FCC Part 90, Part 15
Form Factor: Slim 1U 19" rack mount
Power Input: 100–240 VAC primary with automatic DC failover (External battery management/charger required)
Audio Monitoring: Built-in front-panel speaker
Controls: Keypad with digital display
Accessory Interface: Female DB-25 connector
IP Connectivity: Multi-site IP linking (P2P and Homebrew protocols supported)

Technical Specifications

Parameter	Specification
Model	BDR-1550
Frequency Range	136-174 MHz
Channels	500
Zones	32
Bandwidth	12.5 kHz / 25 kHz
Power Output	Low 5W, Medium Low 10W, Medium High 30W, High 50W
Operating Voltage	100/240 VAC (with 13.8 VDC backup)
Audio Output	Internal 2W 8 Ω speaker
Connectors	Type N Female, 25-pin accessory
Control Interface	Front panel keypad, PC software
Tone Options	CTCSS, DCS, CWID PC programmable
Form Factor	1U 19” rackmount (Dimensions: 19” W × 14” D × 1.75” H)
Cooling	Internal fan
Certifications	FCC Part 90, Part 15

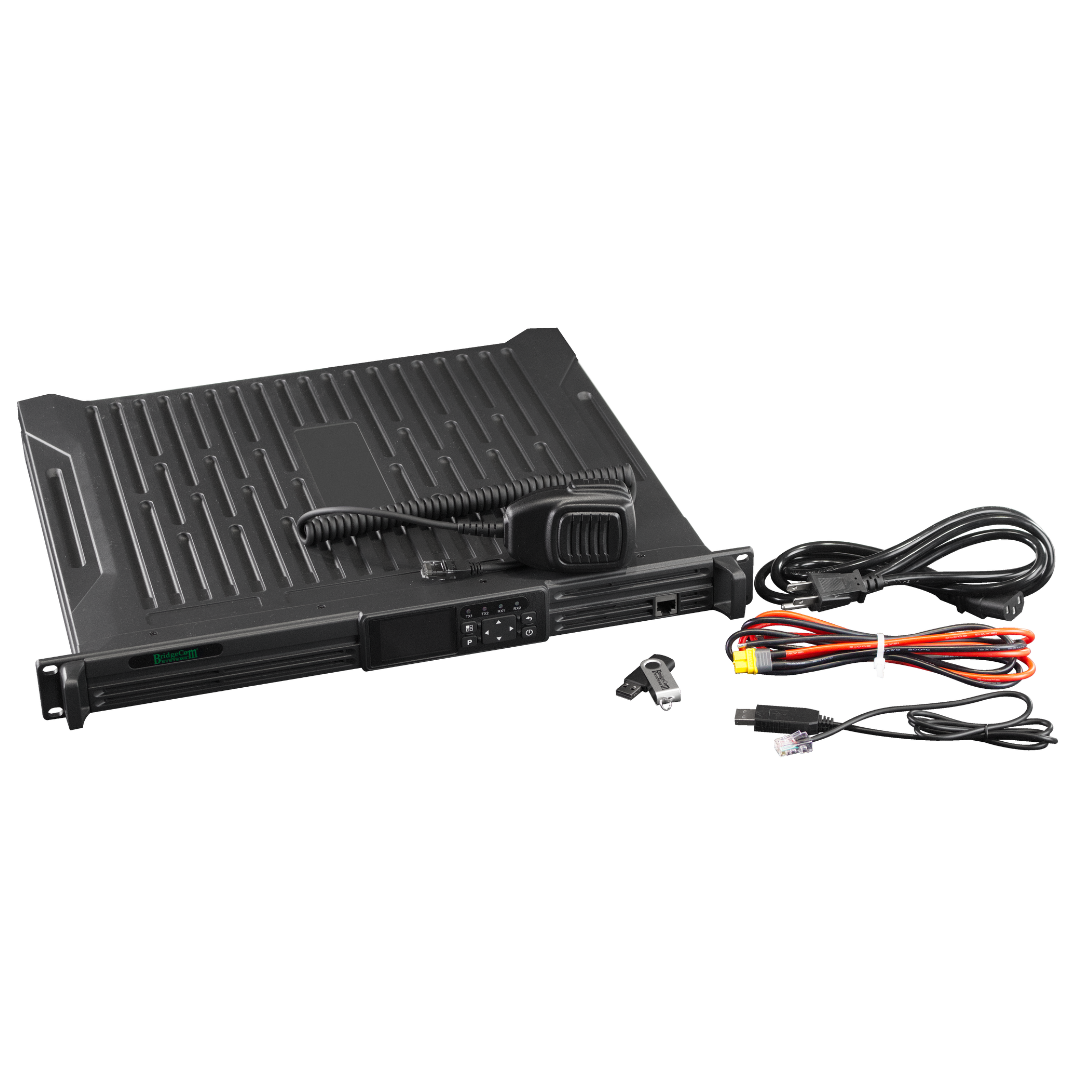

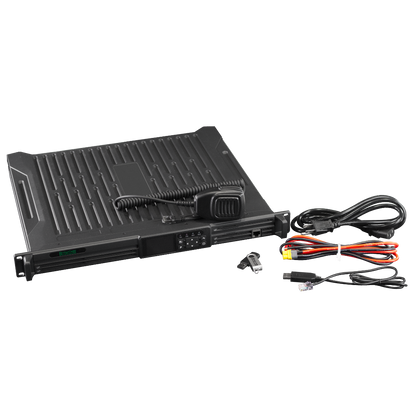

What’s Included?

BridgeCom Systems BDR-1550 Repeater
Hand microphone
AC and DC power cables
Programming cable
USB drive containing CPS and user manual
2-Year manufacturer warranty
Access to BridgeCom technical support

Why Choose It?

🏭 Commercial-Grade Reliability & Flexible Performance

The BDR-1550 pairs 50W of FCC Part 90-certified VHF power with a compact 1U frame built for standard equipment racks. Each channel is individually programmable for dedicated Analog or DMR digital operation, making it an ideal choice for phased system upgrades or migrating an existing system to DMR without replacing core hardware. Integrated IP networking enables simple multi-site linking across private commercial networks or amateur DMR systems like BrandMeister and TGIF. Combined with automatic DC failover during power disruptions, it gives commercial system managers and radio clubs a dependable, network-ready repeater that fits smoothly into any installation.

Upgrade your system today with the BridgeCom Systems BDR-1550 (VHF) - dependable, network-ready, and built for long-term service.

Key Features

🔊 Front-Panel Speaker and Keypad Controls
Monitor local audio directly from the front-panel speaker, and quickly adjust channel selection, volume, power output, and display settings using the keypad and digital display.
🎙️ Included Standard Microphone
Perform direct transmit operations and on-site testing with the included standard microphone, fully compatible across both Analog and DMR channels.
⚡ AC Primary Power with Auto DC Failover
Provides uninterrupted operation by automatically switching to DC backup power during AC power outages (external battery charger/management required).
🔌 DB-25 Accessory Connector
Integrates with external controllers, site-linking hardware, or third-party radio accessories via the female DB-25 rear interface.
🌐 Multi-Site IP & Homebrew Network Linking
Supports IP network linking for multi-site DMR repeater expansion and Homebrew protocols for direct connection to networks like BrandMeister and TGIF.
