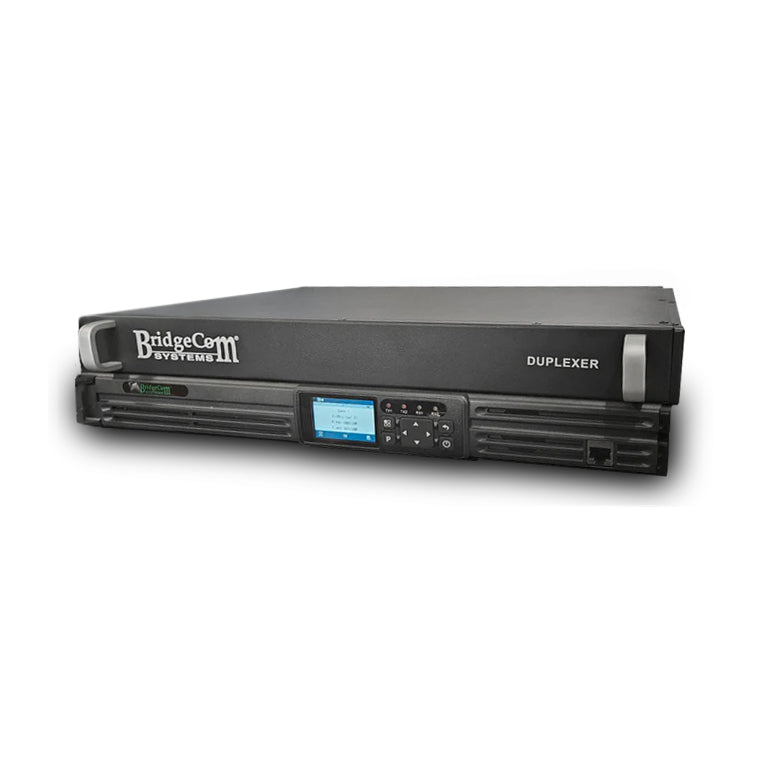

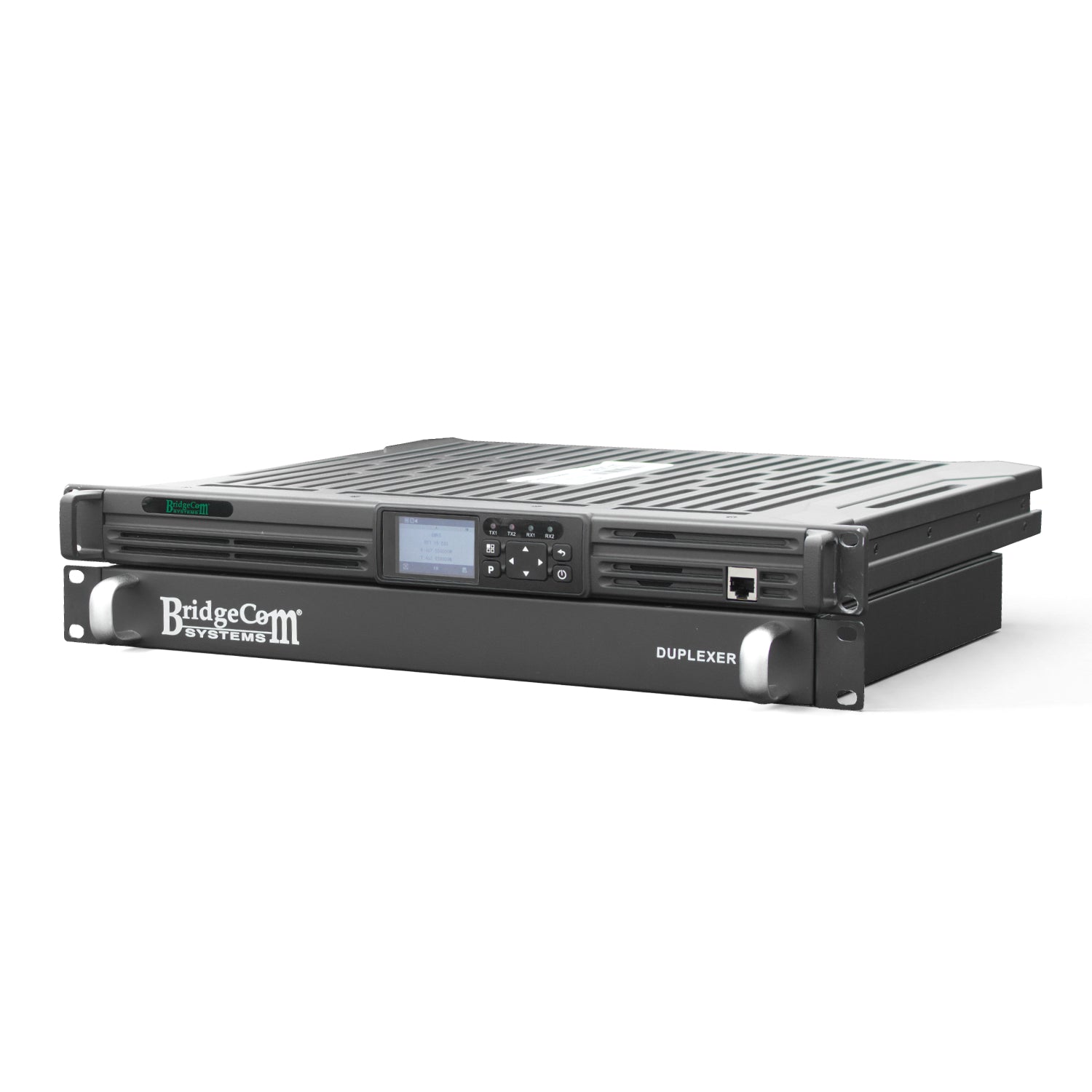

  • The BridgeCom BCR-GMRS is a black GMRS Repeater System with Duplexer, featuring a front display, buttons, ventilation slots, and rack-mount design. It’s FCC Part 95E certified and shown on a white background.

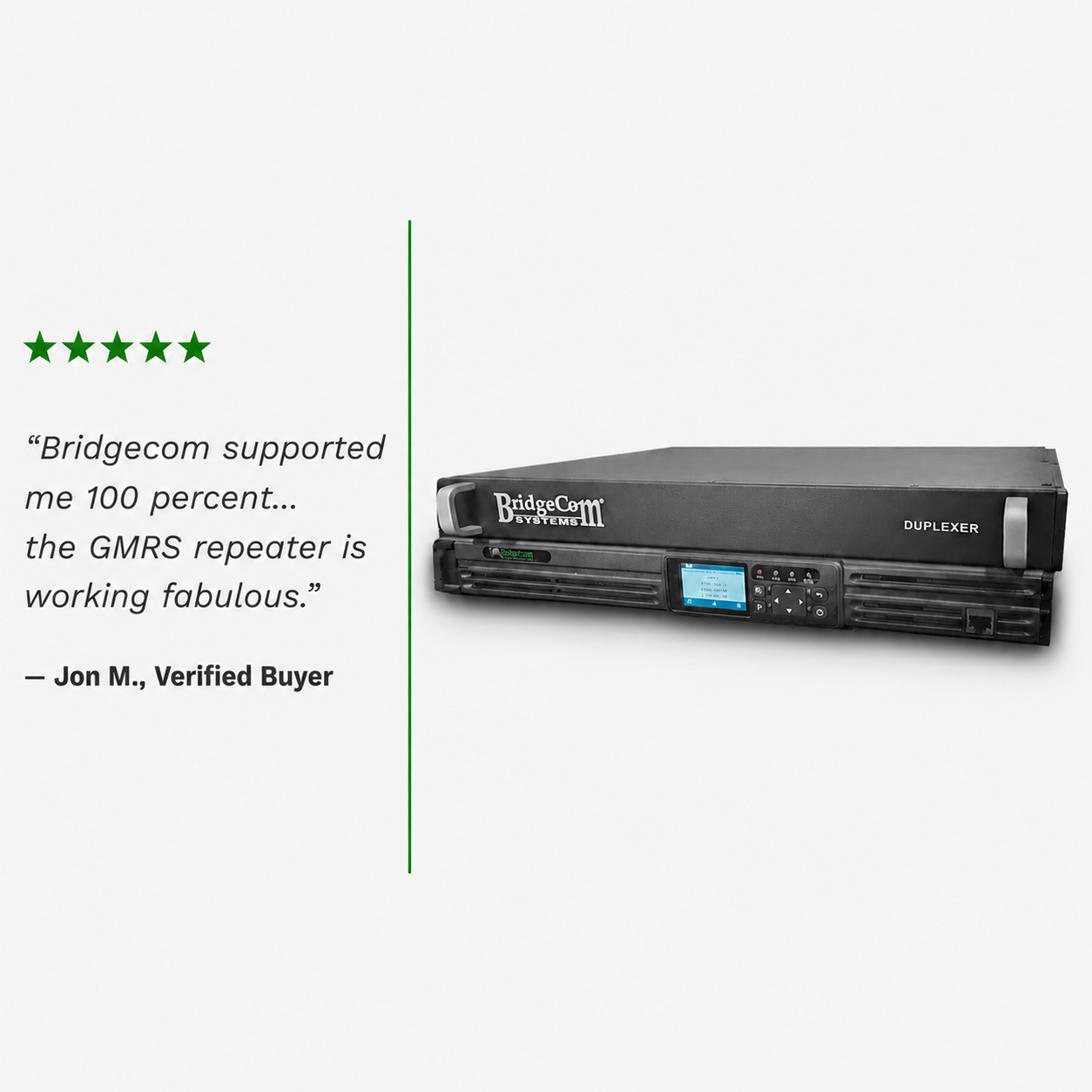

  • BridgeCom BCR-GMRS GMRS Repeater System with Duplexer, featuring a display screen, appears next to a five-star review from Jon M., Verified Buyer, praising its support and pre-tuned duplexer performance; FCC Part 95E certified.

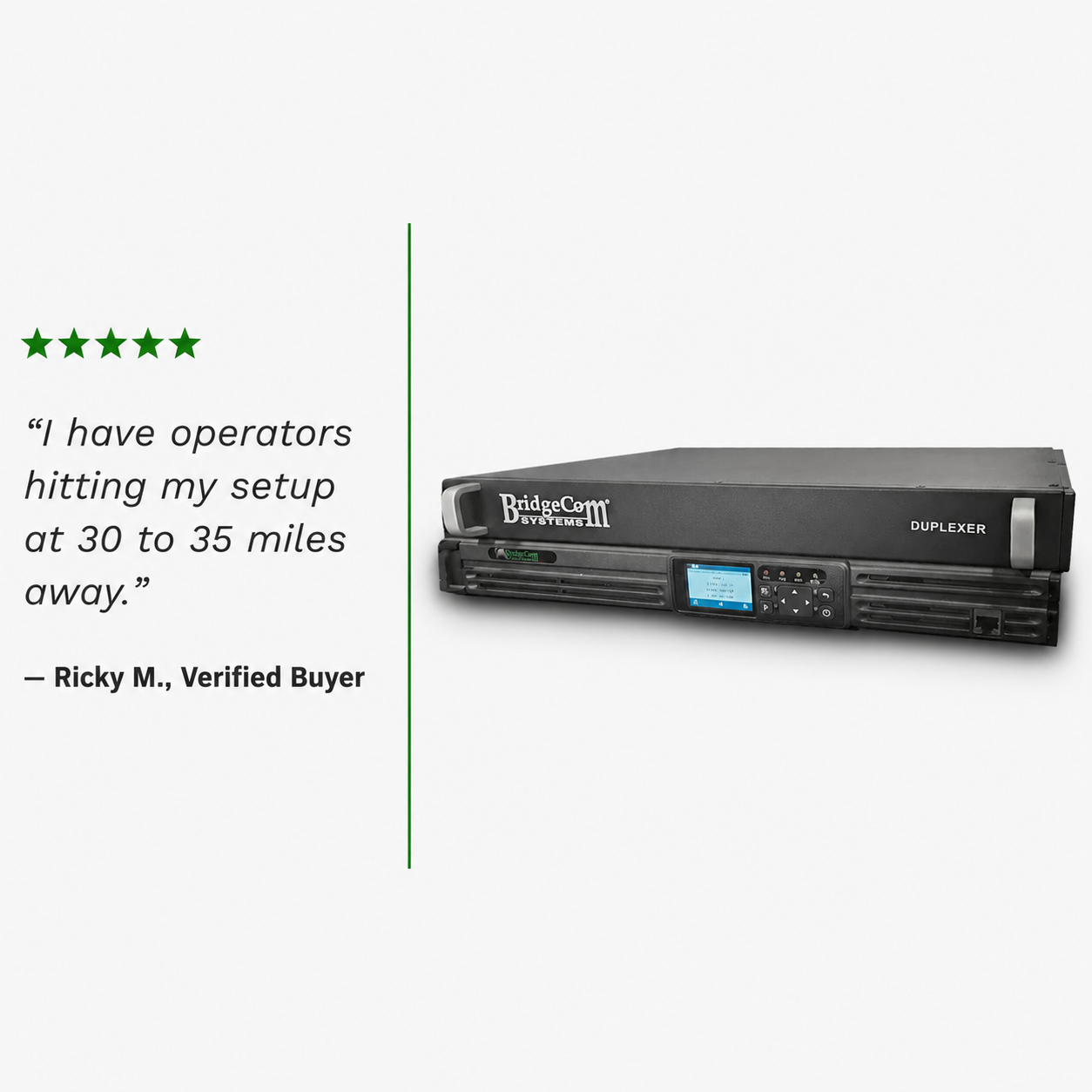

  • The BridgeCom BCR-GMRS Repeater System with Duplexer, shown in black, sits beside a five-star rating and a testimonial: “I have operators hitting my GMRS repeater setup at 30 to 35 miles away.” — Ricky M., Verified Buyer.

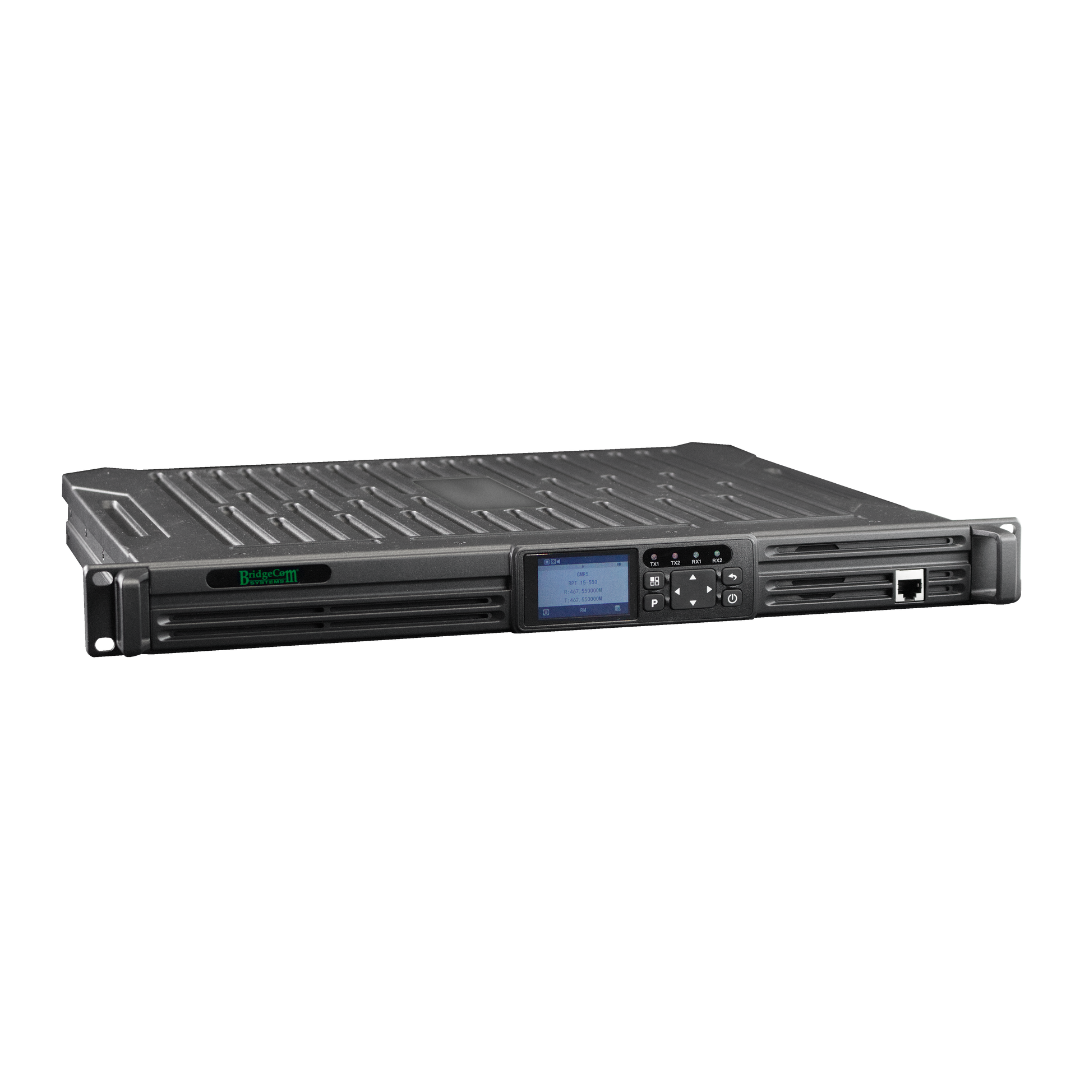

  • The BridgeCom BCR-GMRS GMRS Repeater System with Duplexer is shown on a white background featuring a digital display, control buttons, and network port on the front panel—ideal for GMRS repeater setups.

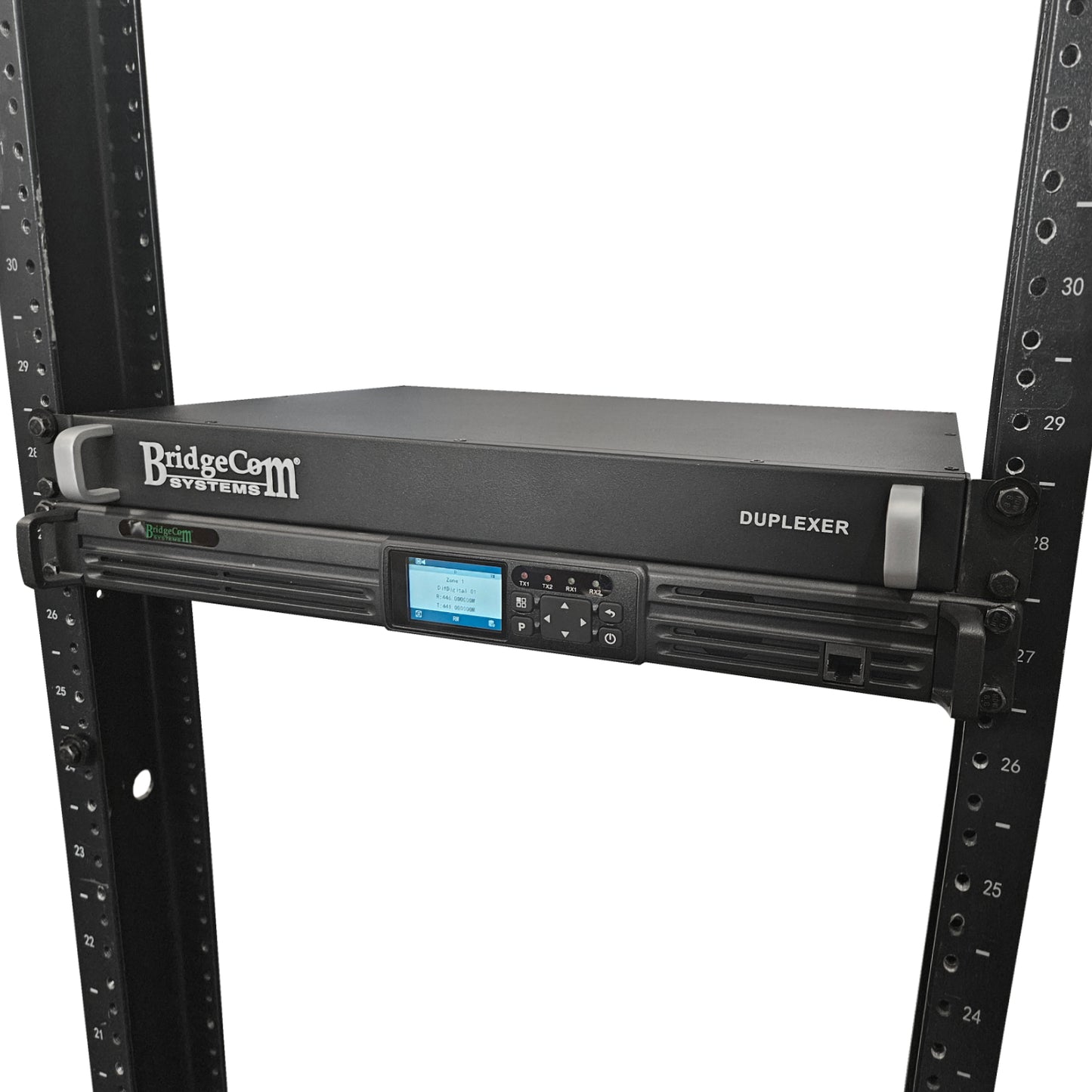

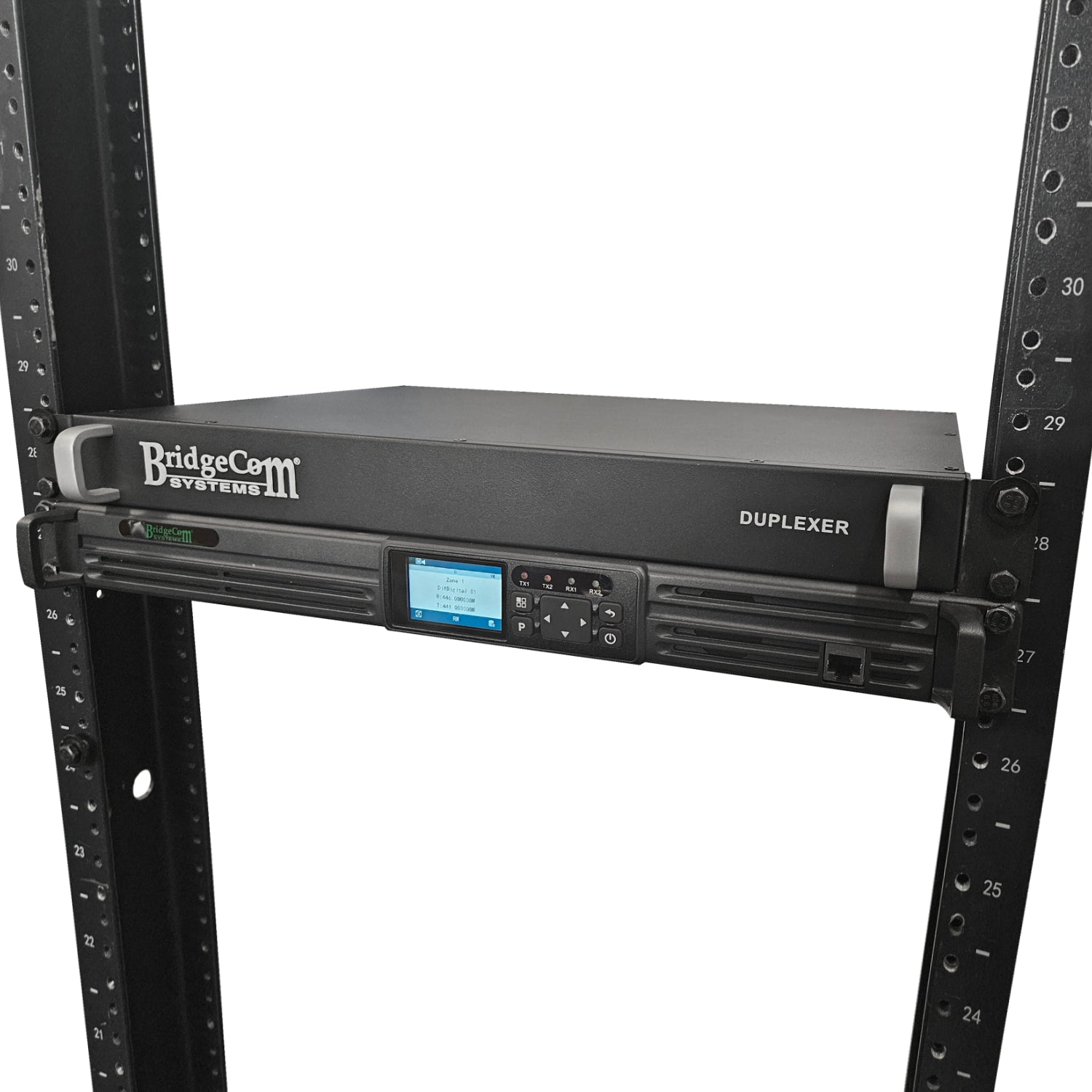

  • The BridgeCom BCR-GMRS Repeater System with Duplexer is designed for GMRS use, features a digital display and control buttons, and is mounted in a black server rack with numbered slots.
  • A close-up of the GMRS Repeater System (UHF) | BridgeCom BCR-GMRS mounted on a server rack, with coaxial and power cables connected to its rear ports. Set against a white background. FCC Part 95E certified GMRS repeater shown.

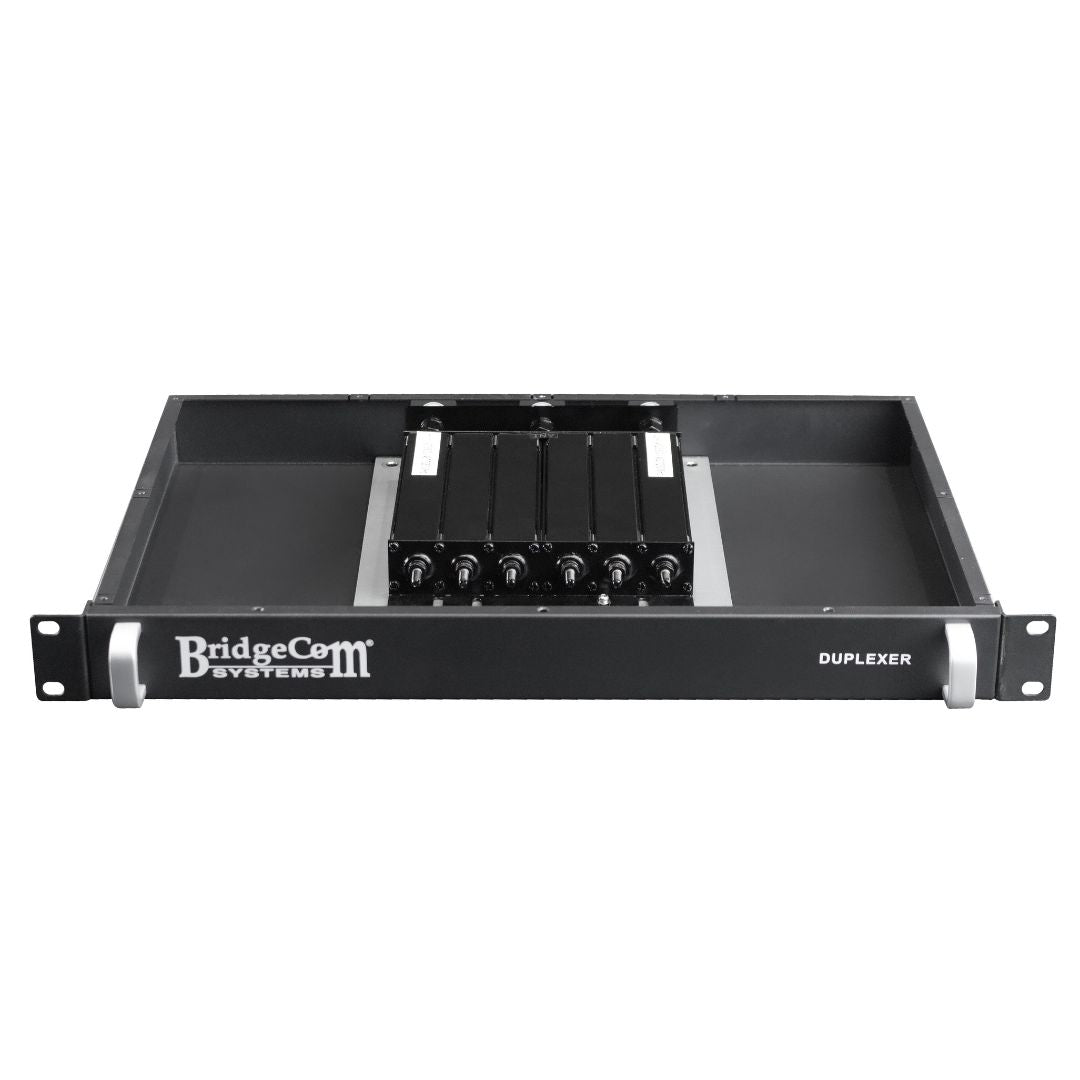

  • A black BridgeCom BCR-GMRS Repeater System with Duplexer, rack-mountable for GMRS repeater use, features multiple connectors, a "DUPLEXER" label on the front panel, and is FCC Part 95E compliant.

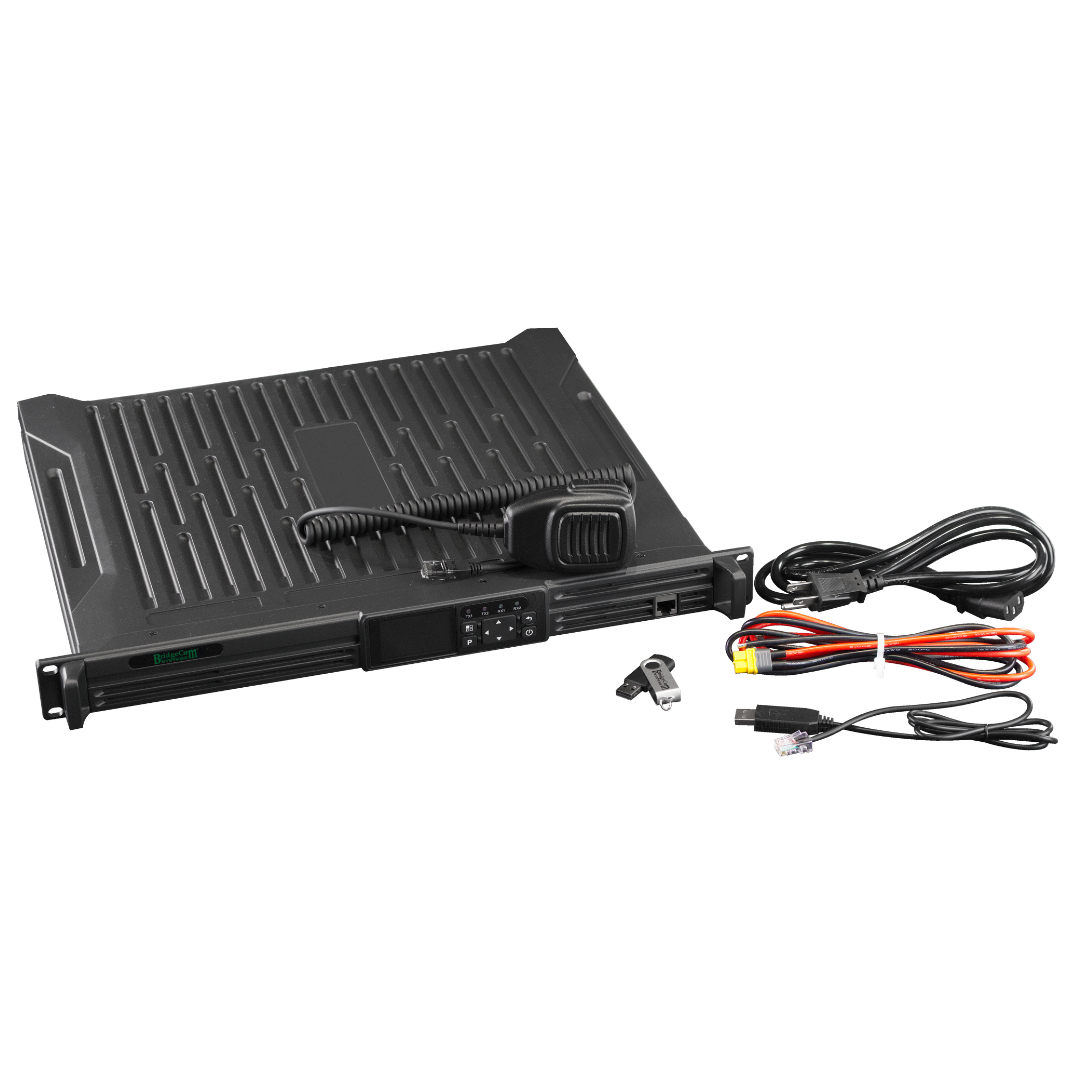

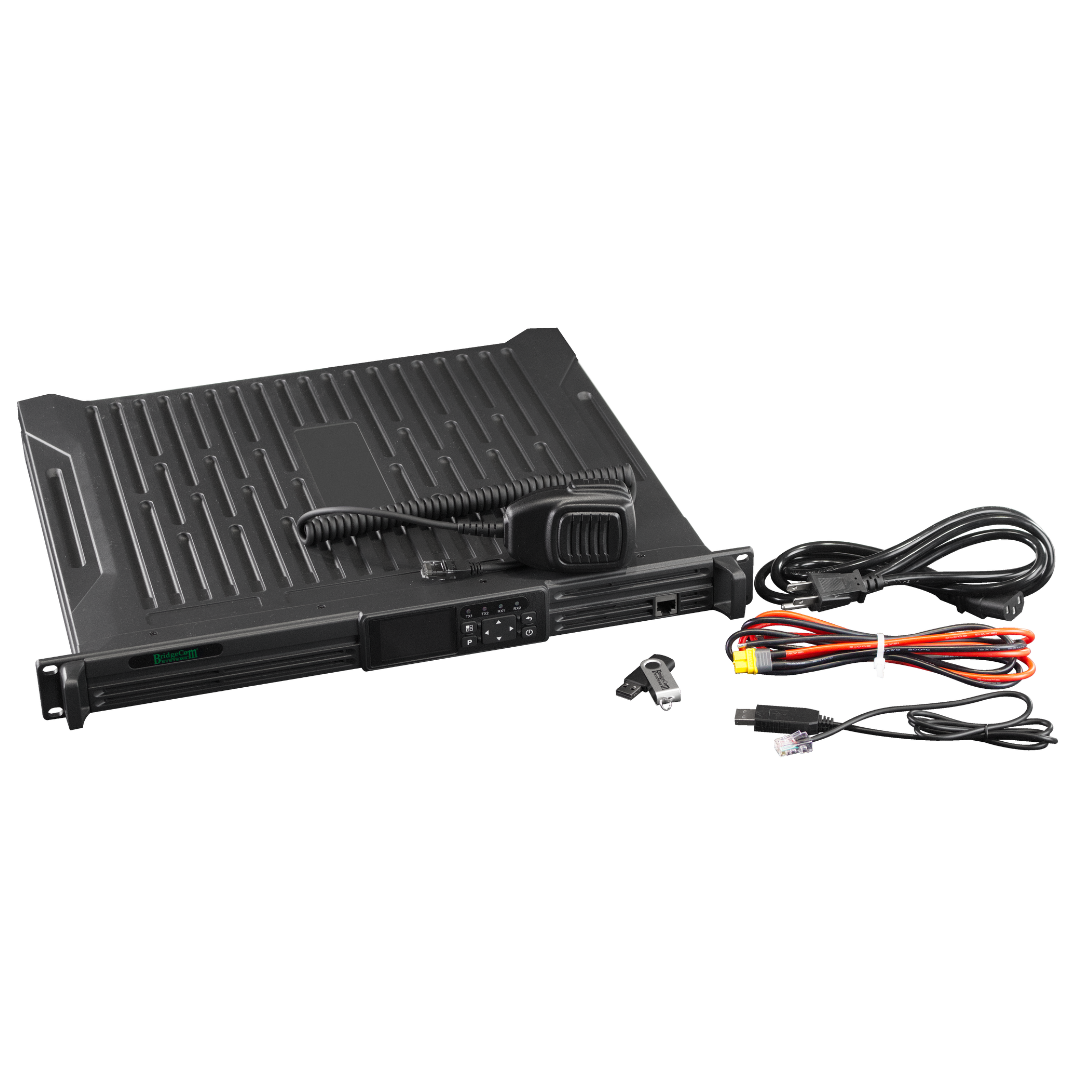

  • The BridgeCom BCR-GMRS GMRS Repeater System (UHF) features a black radio transceiver, handheld microphone, power and Ethernet cables, and key fob on a white background; FCC Part 95E certified, perfect for GMRS repeater setups.

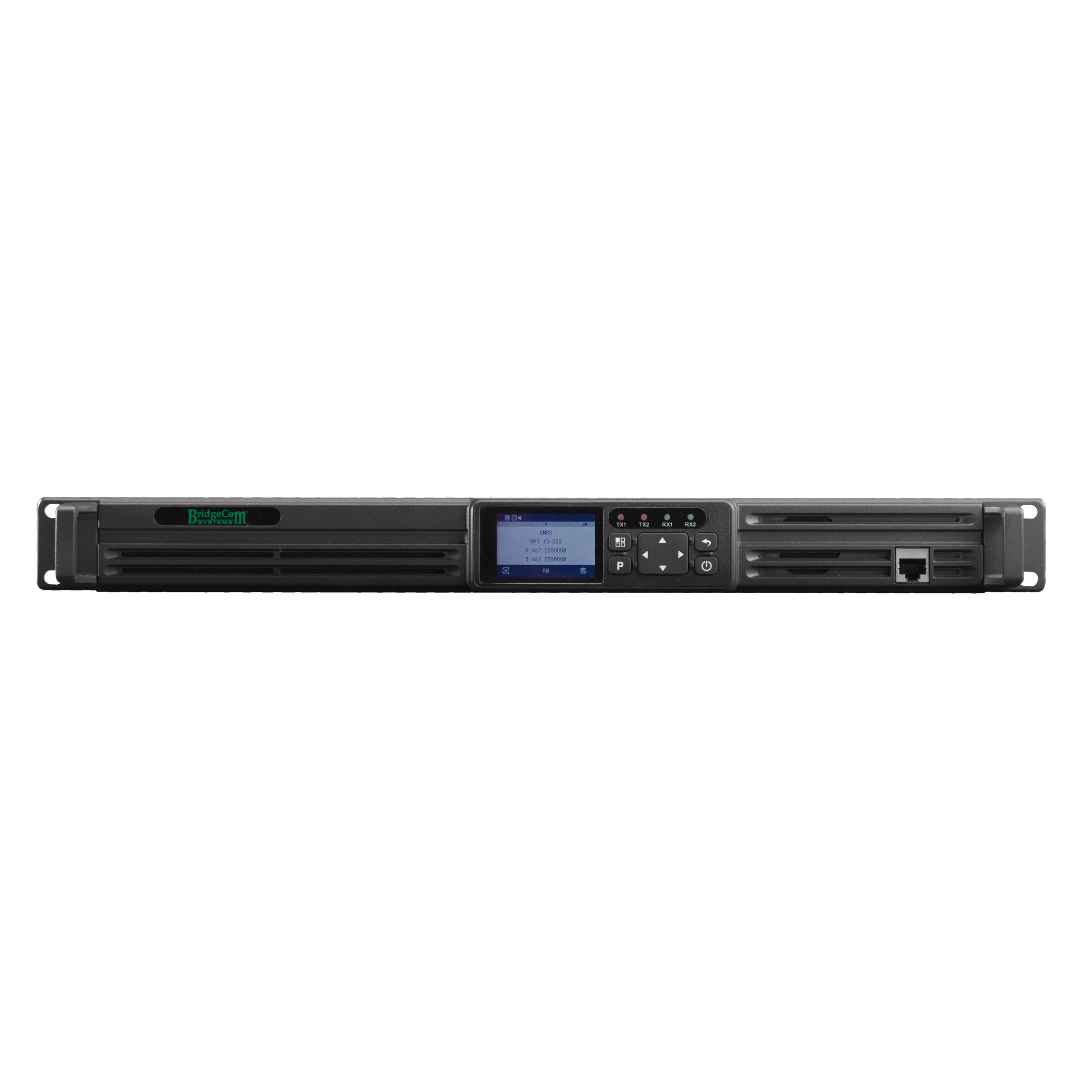

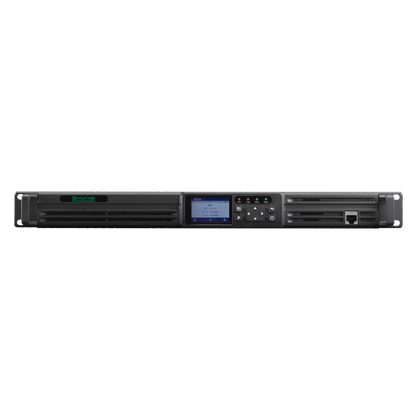

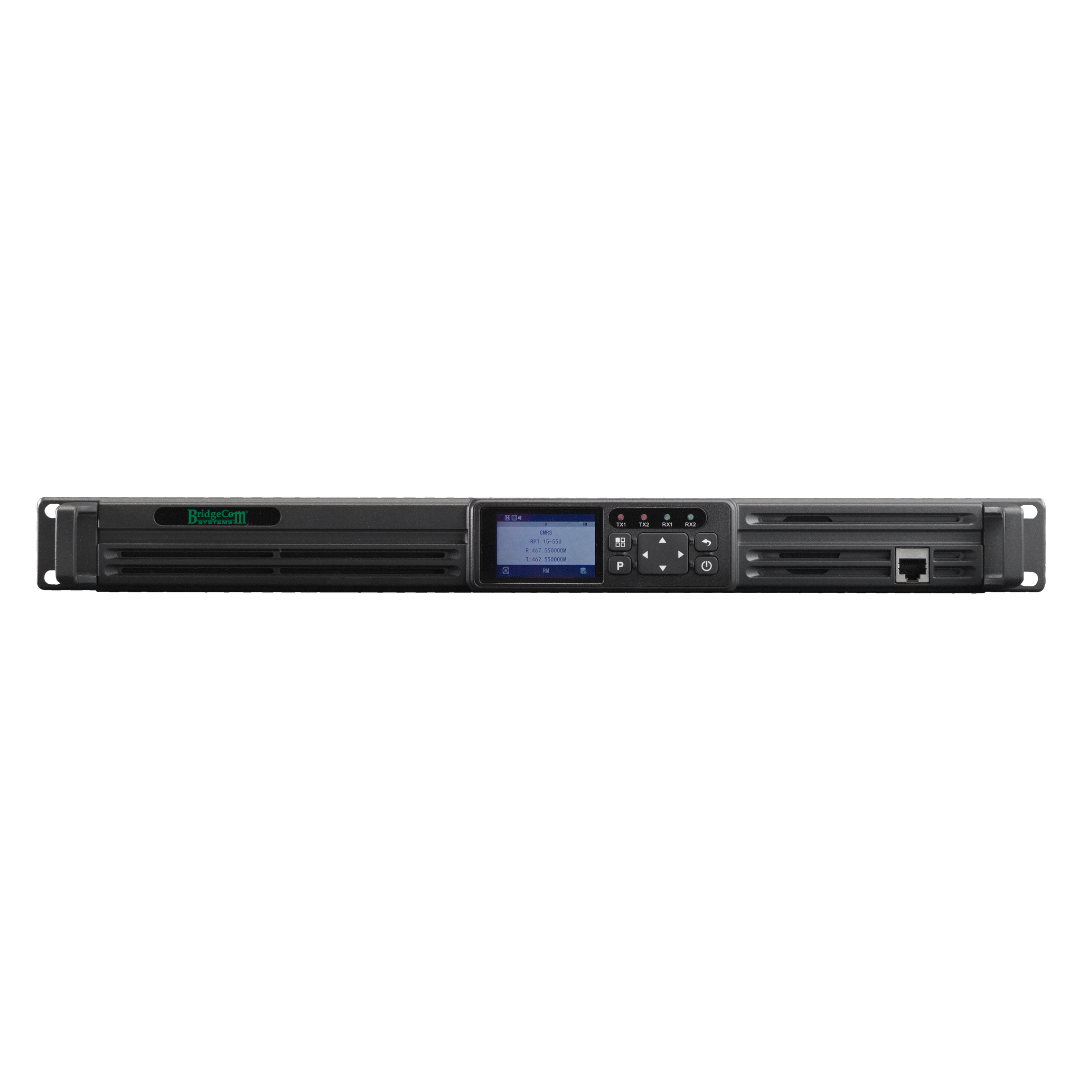

  • Front view of the BridgeCom BCR-GMRS UHF GMRS Repeater System in black, rack-mounted, with vents, display screen, control buttons, indicator lights, multiple ports—including Ethernet—on the right side. FCC Part 95E certified.

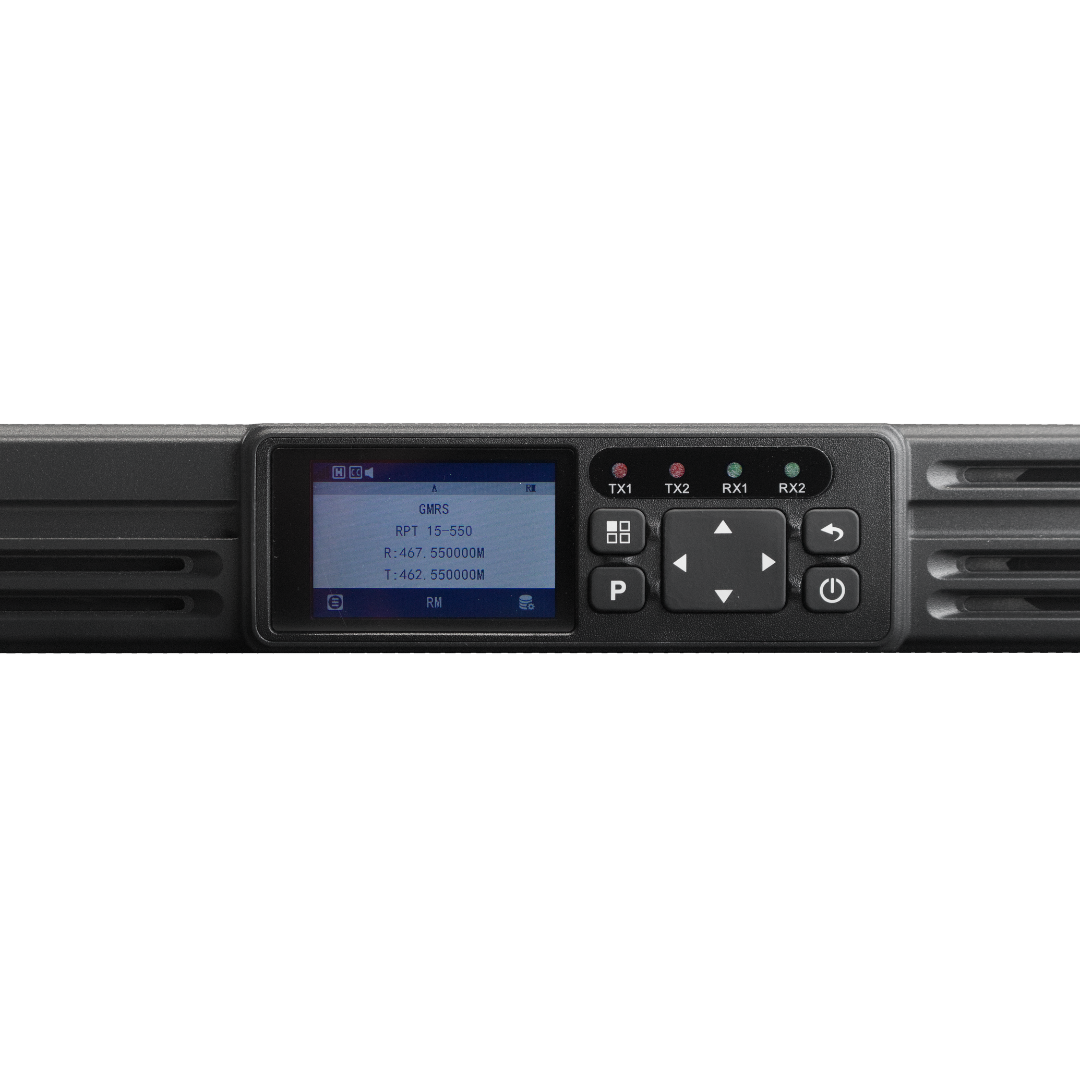

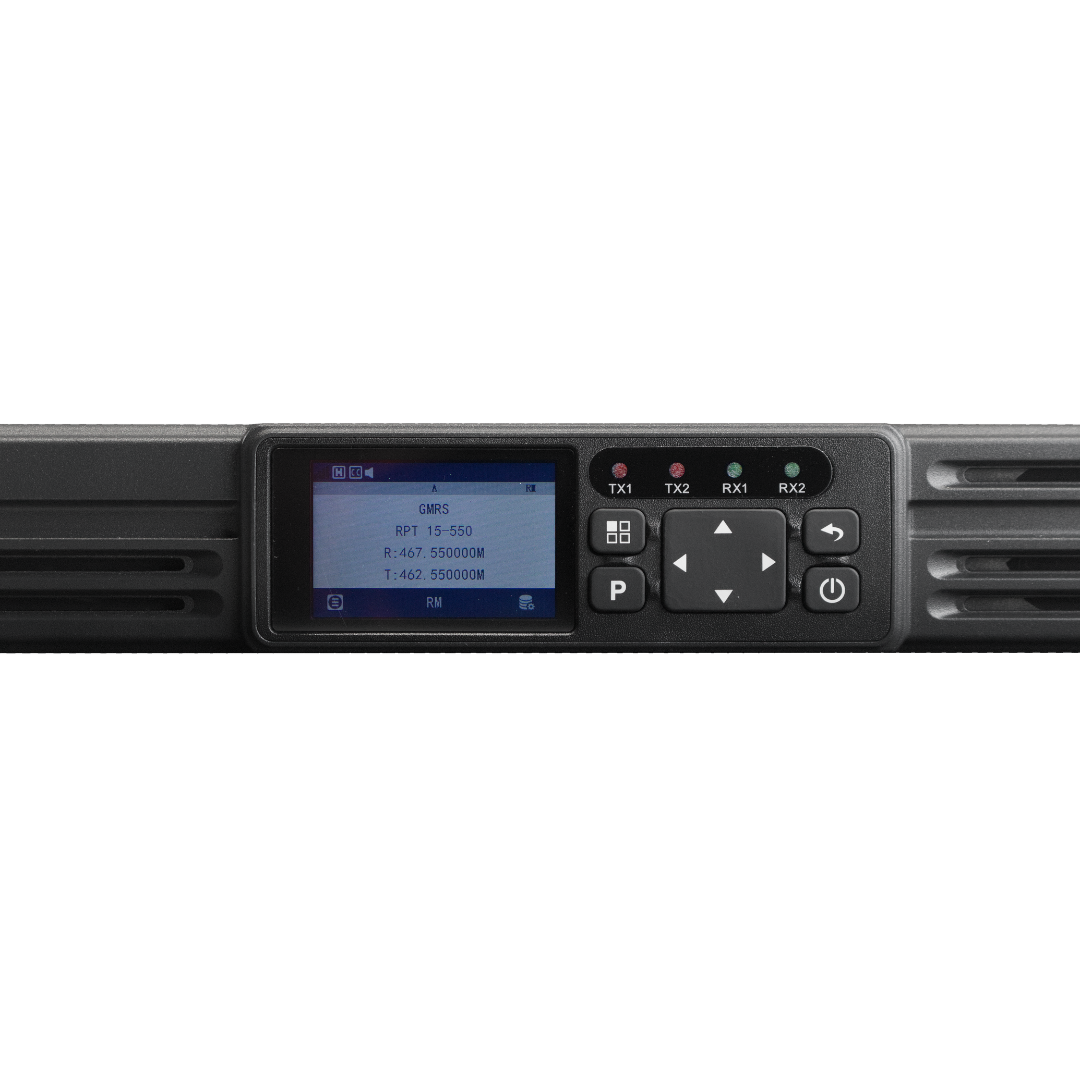

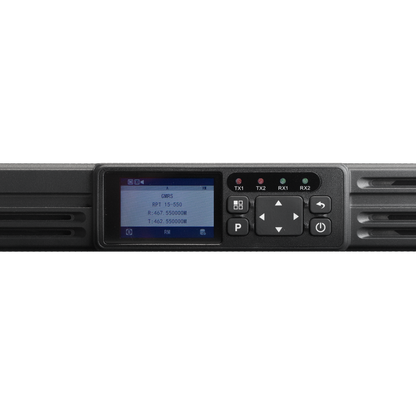

  • Front view of the BridgeCom BCR-GMRS GMRS Repeater System (UHF) in black, featuring a small settings screen, indicator lights, arrow navigation buttons, and power button. FCC Part 95E certified.

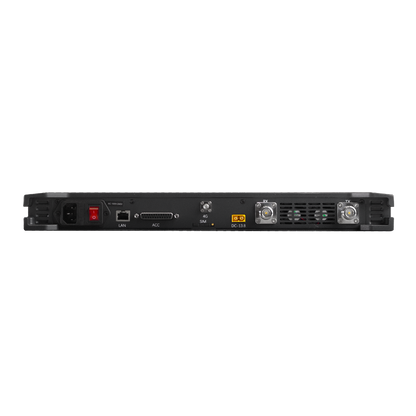

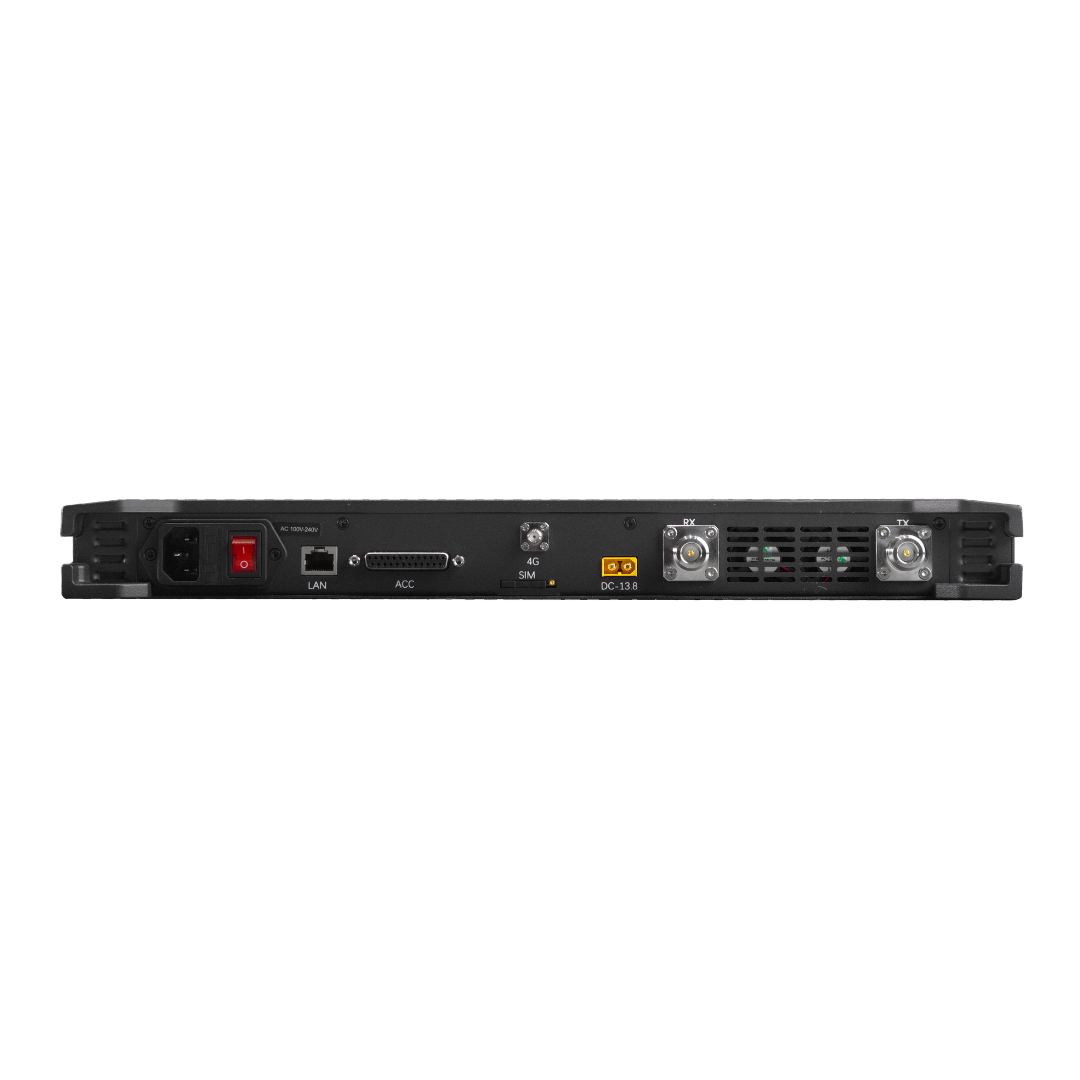

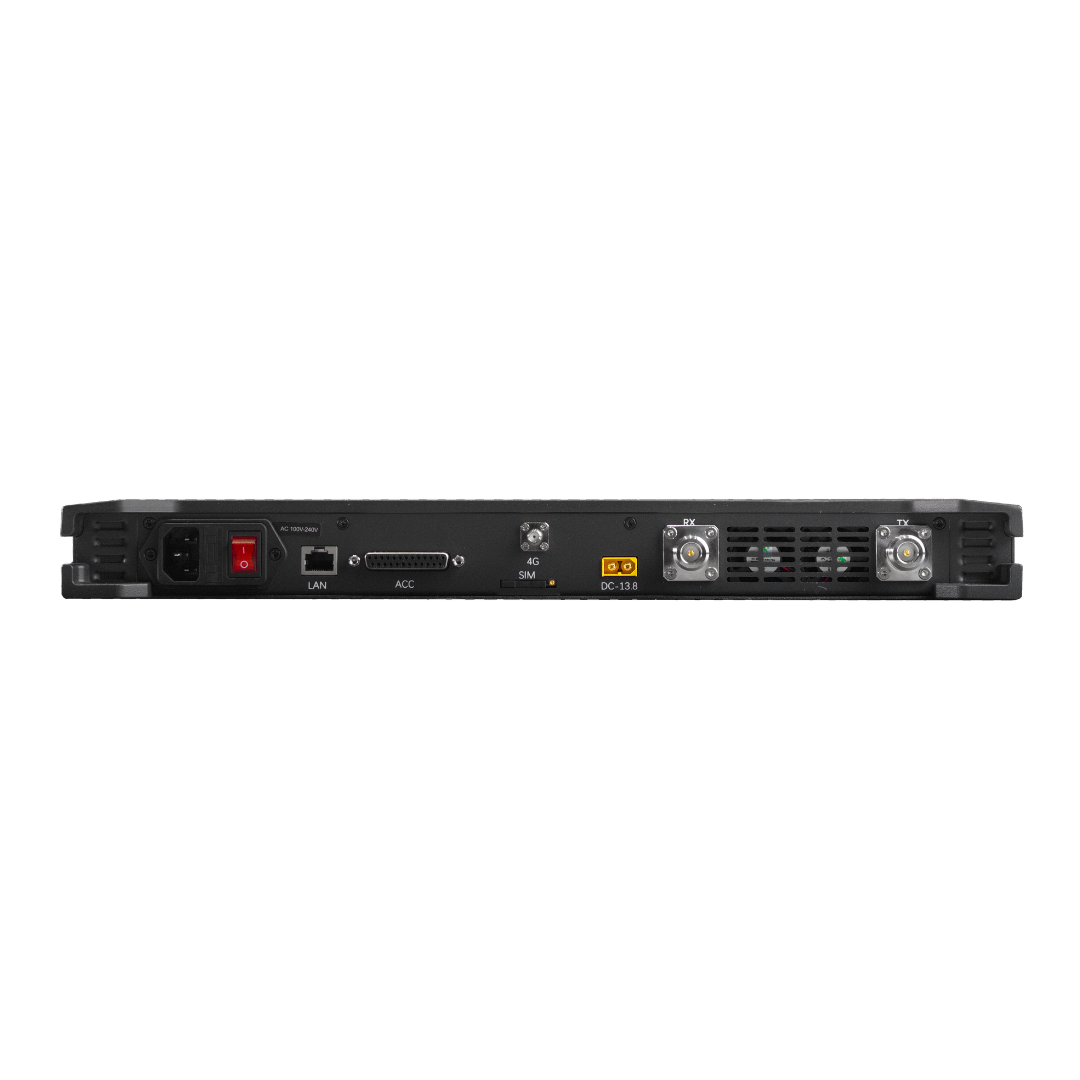

  • Rear view of the BridgeCom BCR-GMRS UHF GMRS Repeater System showing LAN, AC, SIM card slot, dual RF connectors, on/off switch, cooling vents; FCC Part 95E certified for reliable communication.

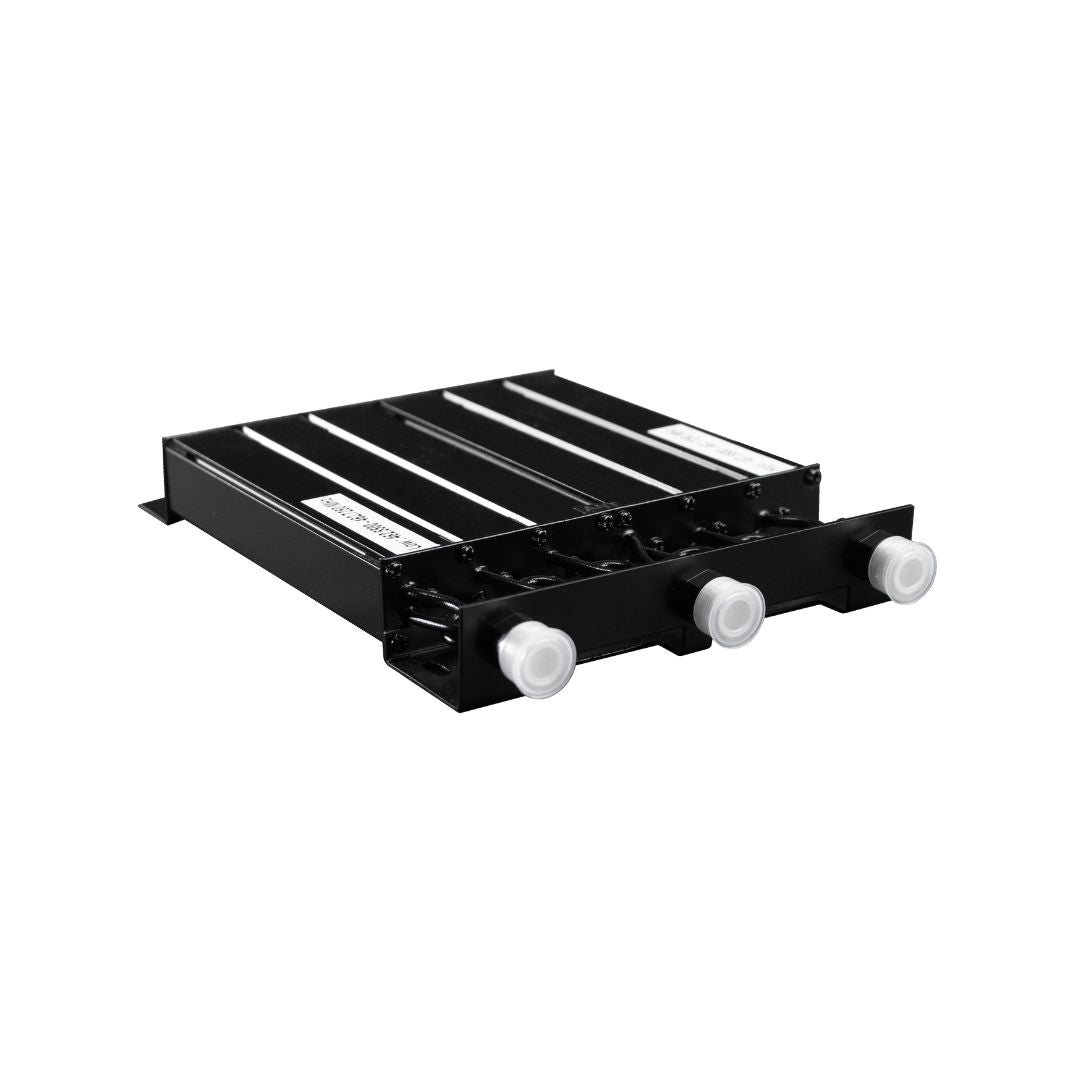

  • The BridgeCom BCR-GMRS Repeater System with Duplexer is a black rectangular industrial unit, featuring parallel grooves, top labels, and three white-capped cylindrical connectors on one side, displayed against a white background.

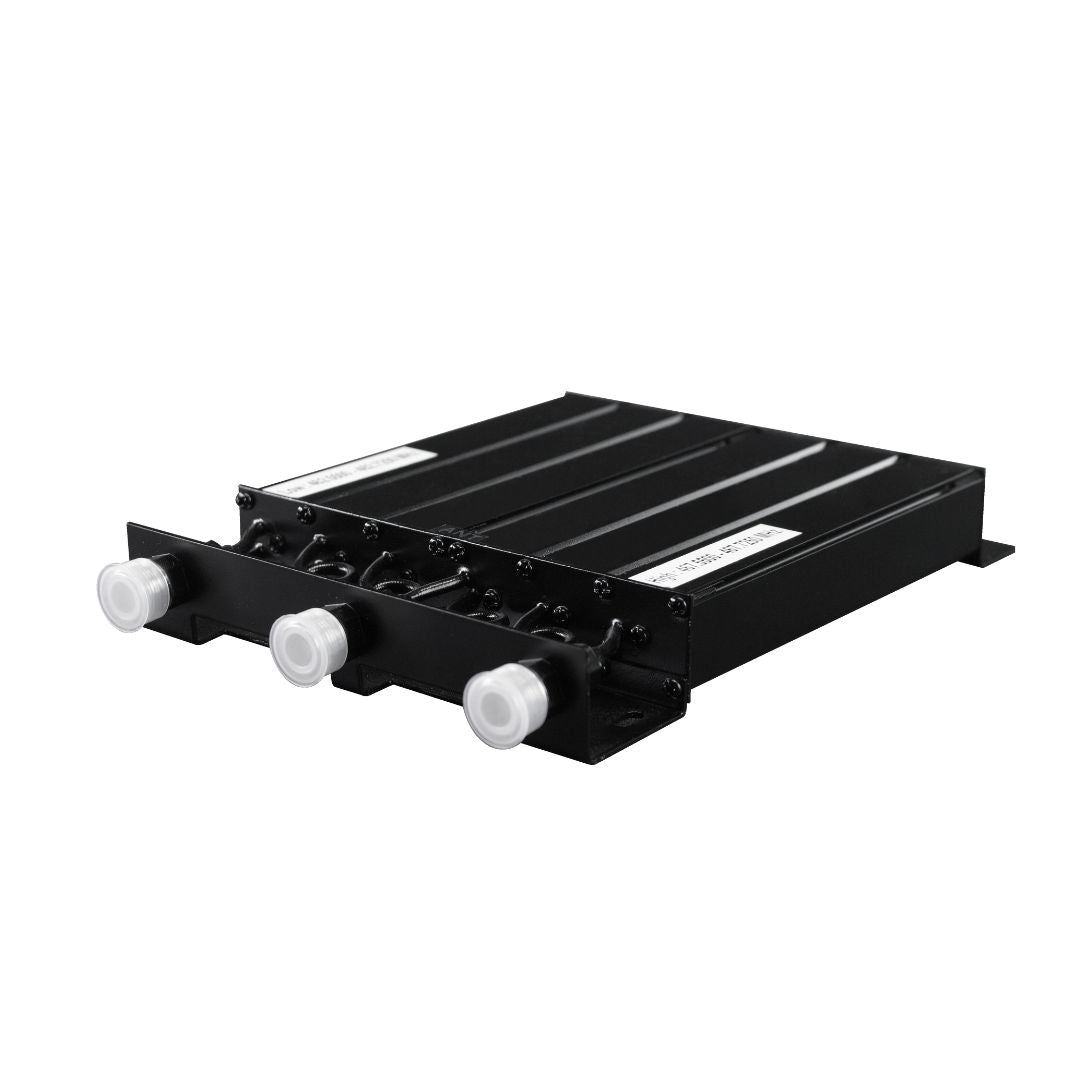

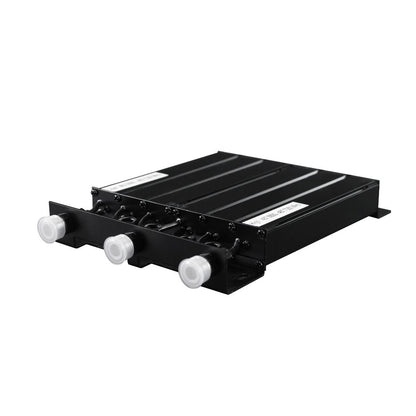

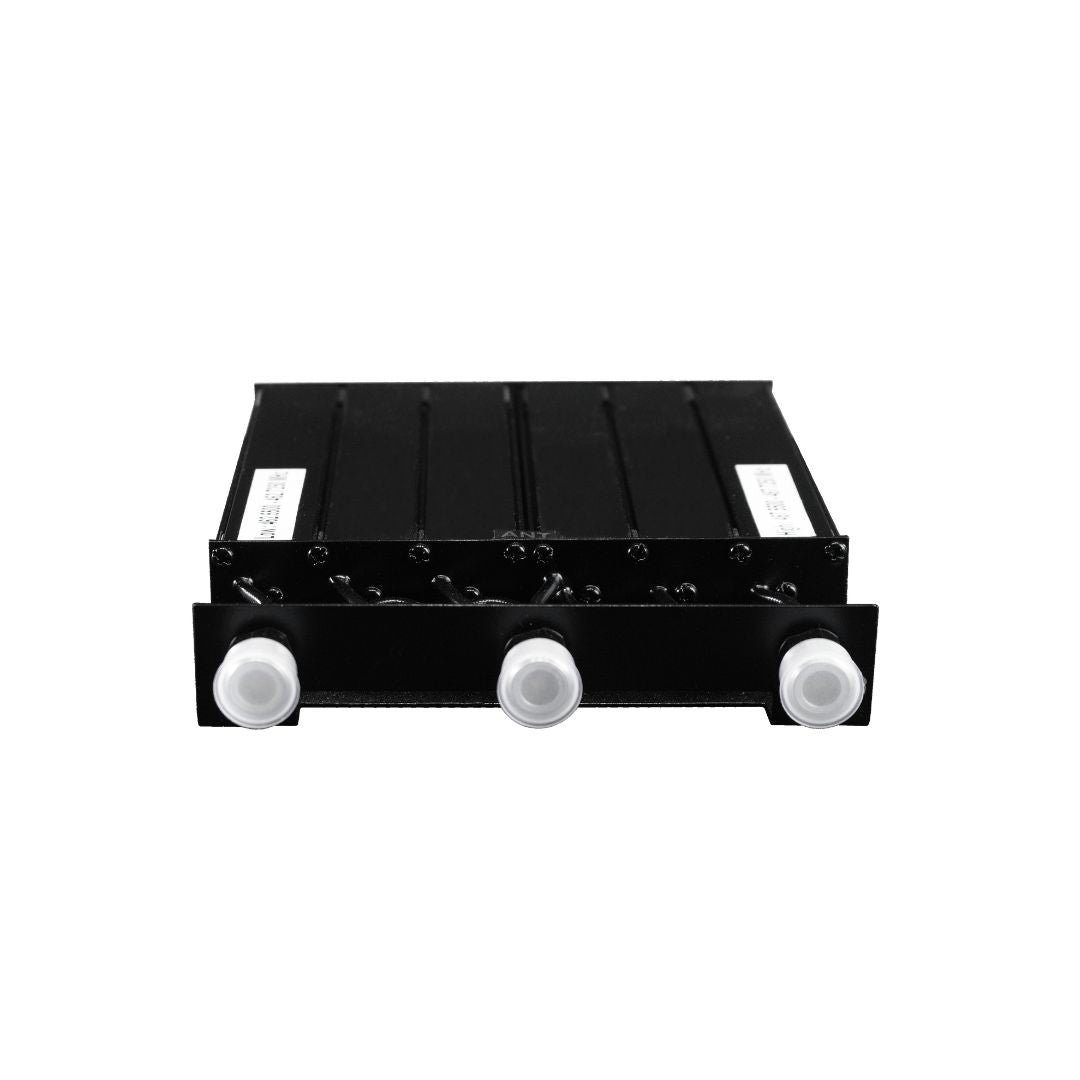

  • The BridgeCom BCR-GMRS GMRS Repeater System with Duplexer is a black rectangular device featuring three round white front connectors, FCC Part 95E compliant, shown from the front against a plain white background.

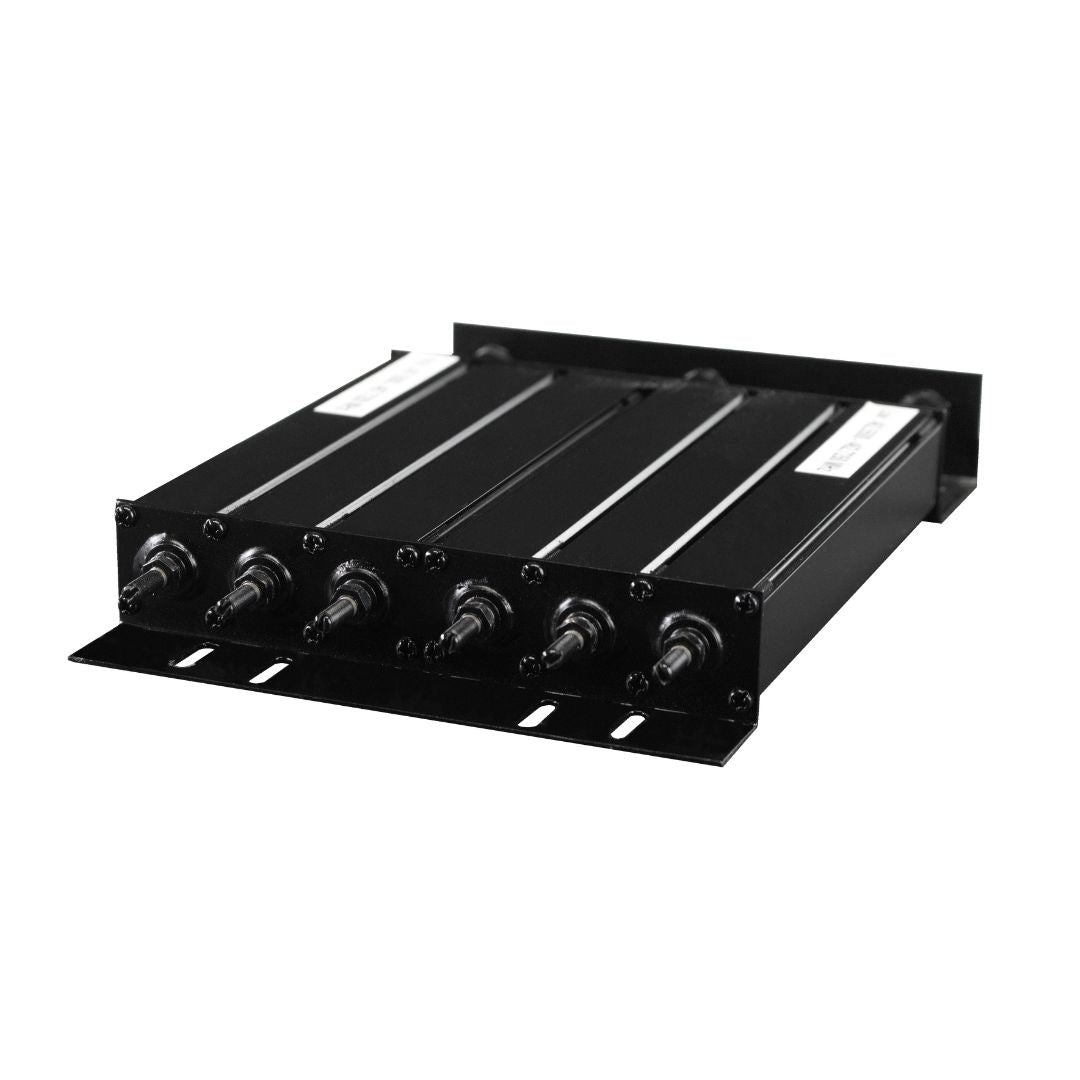

  • The BridgeCom BCR-GMRS is a black rectangular GMRS Repeater System with Duplexer, featuring four parallel modules on a metal base with screw holes. It’s ideal as a GMRS repeater and is FCC Part 95E compliant.

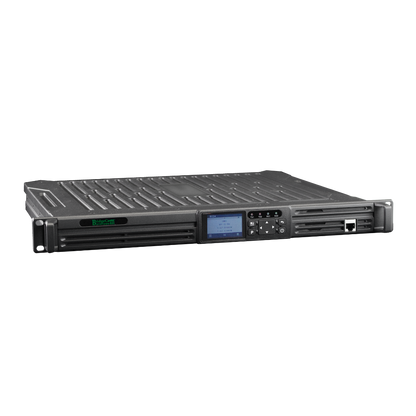

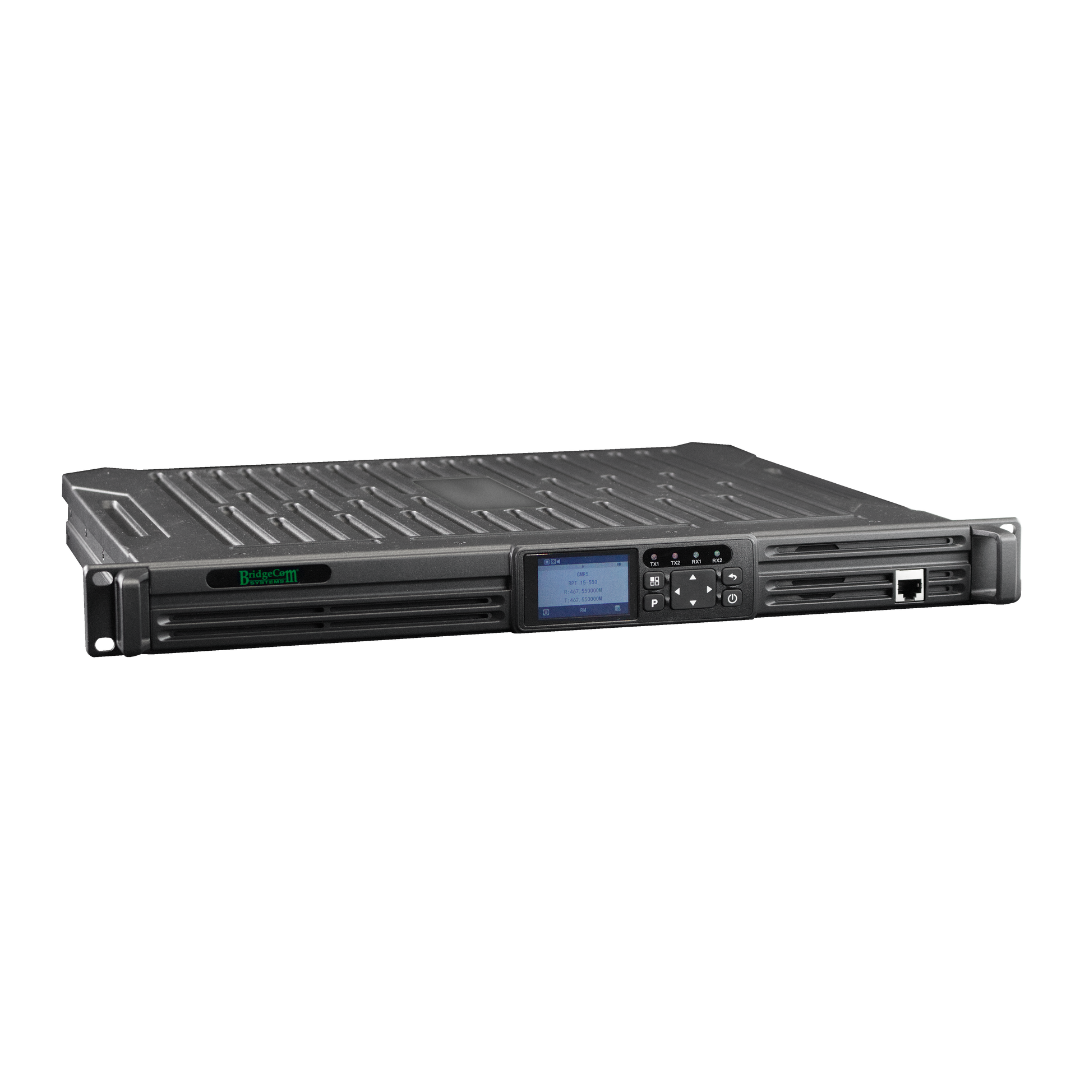

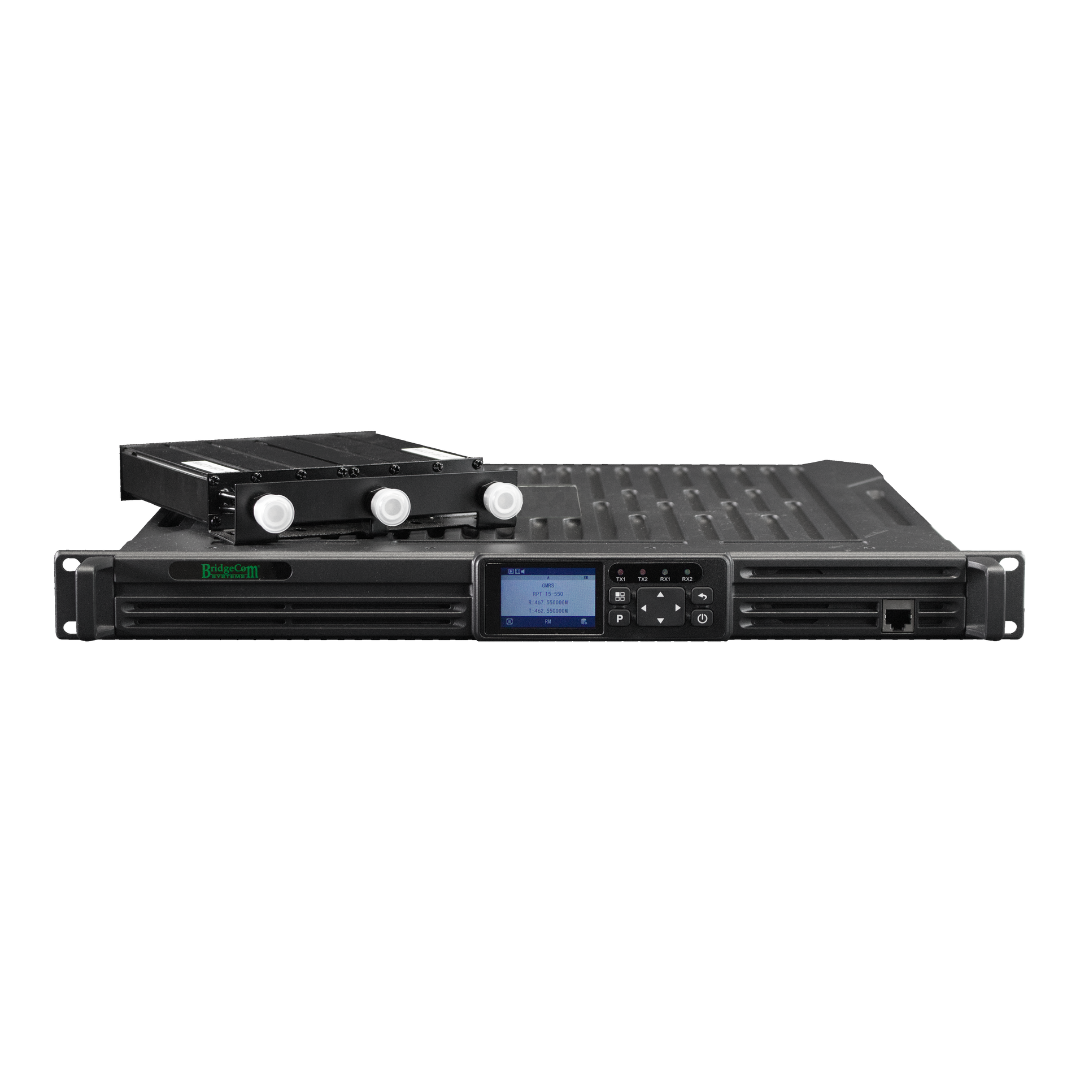

  • The GMRS Repeater System with Duplexer | BridgeCom BCR-GMRS is a black 1U rackmount server featuring an LCD screen, control buttons, removable hard drive tray, multiple front ports, and ventilation slots.

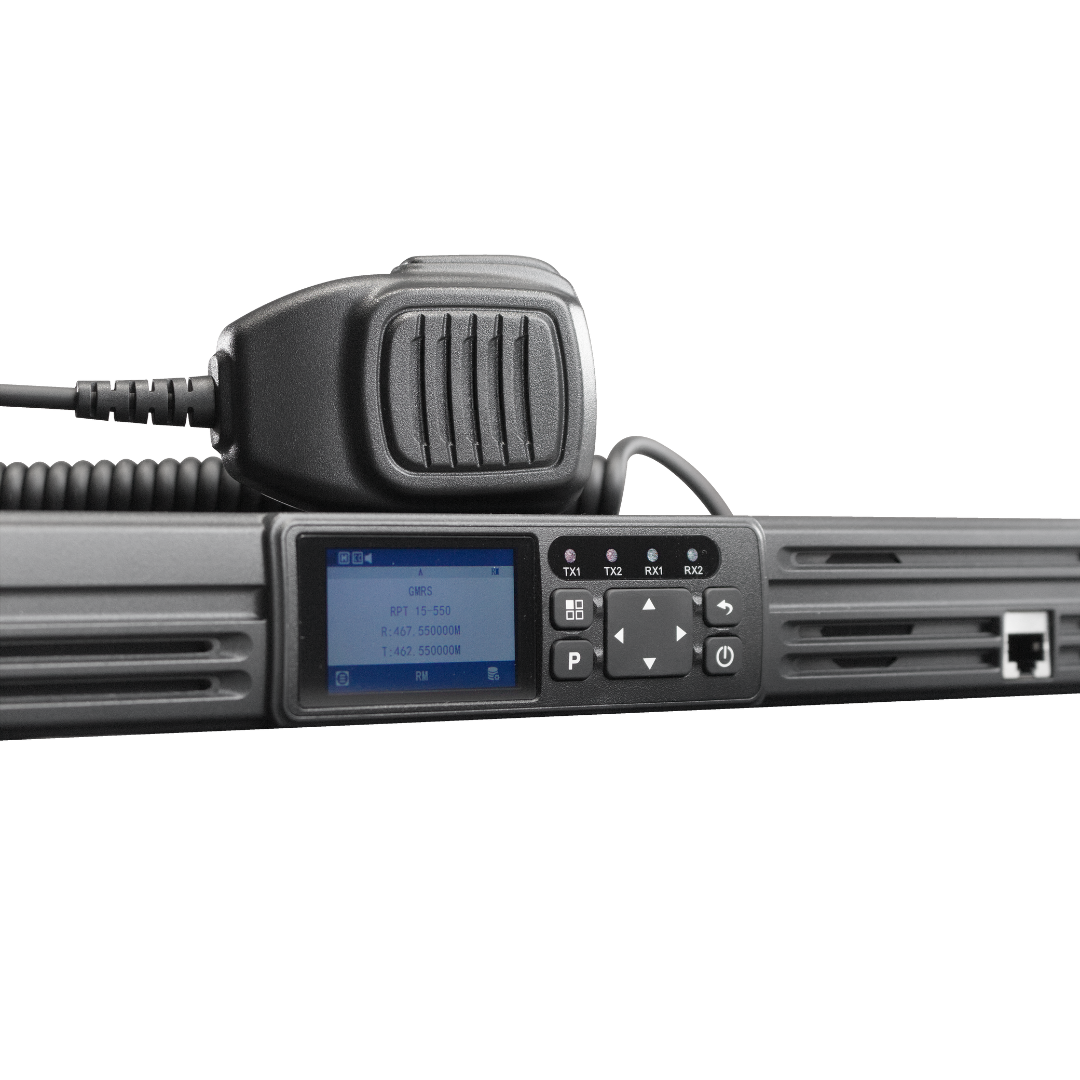

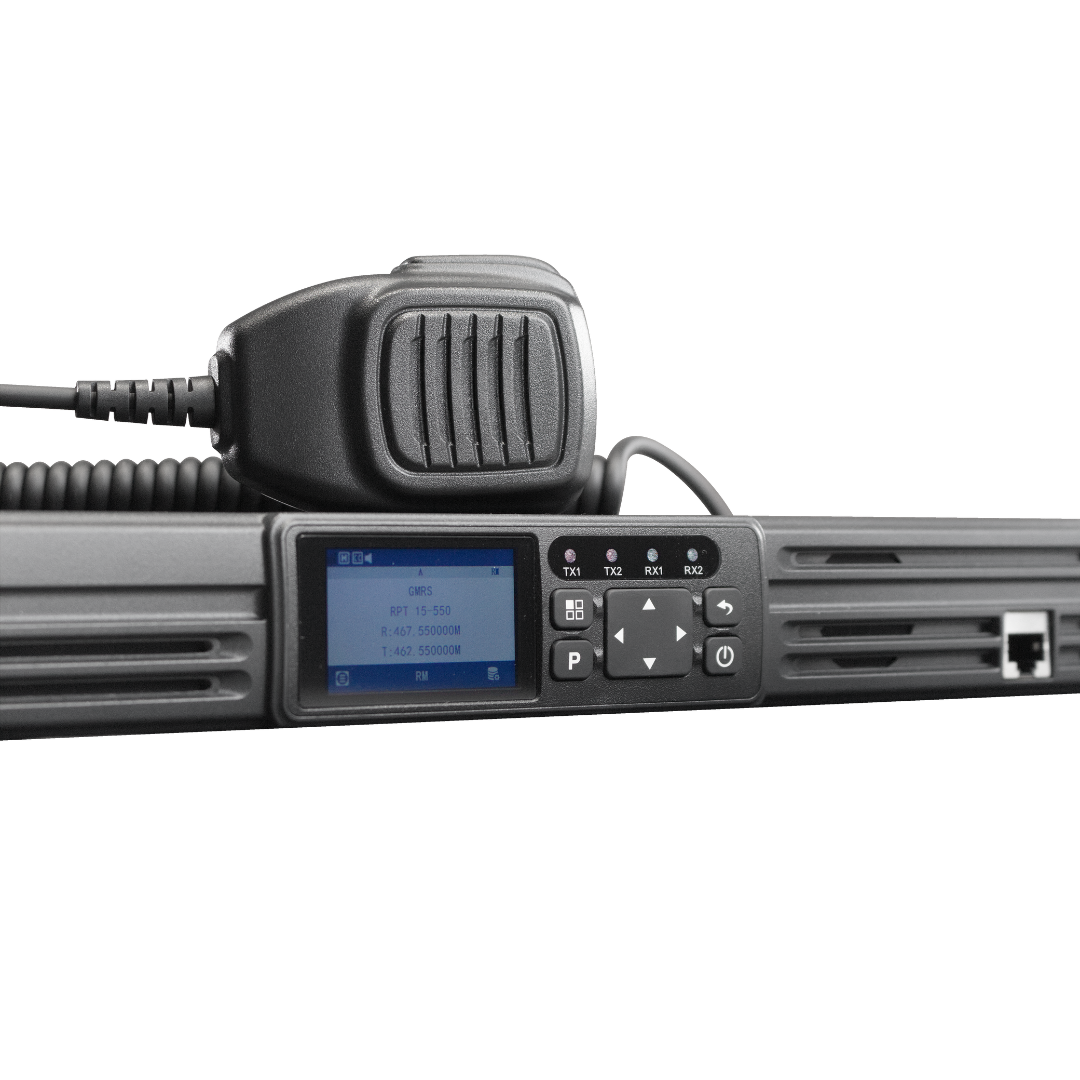

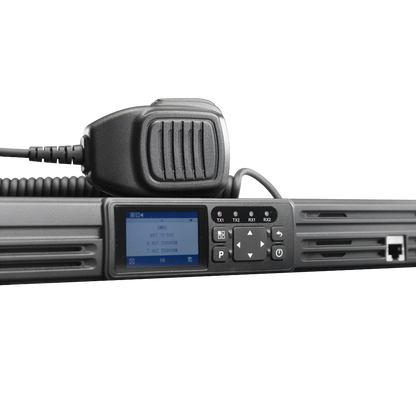

  • A close-up of the black BridgeCom BCR-GMRS UHF GMRS Repeater System shows a microphone attached by a coiled cord, a small frequency display, keypad buttons, and FCC Part 95E certification.
1 16

GMRS Repeater System with Duplexer | BridgeCom BCR-GMRS

GMRS Repeater System with Duplexer | BridgeCom BCR-GMRS

WE HAVE STOCK and can Ship quickly!

BridgeCom Systems BCR-GMRS Repeater.

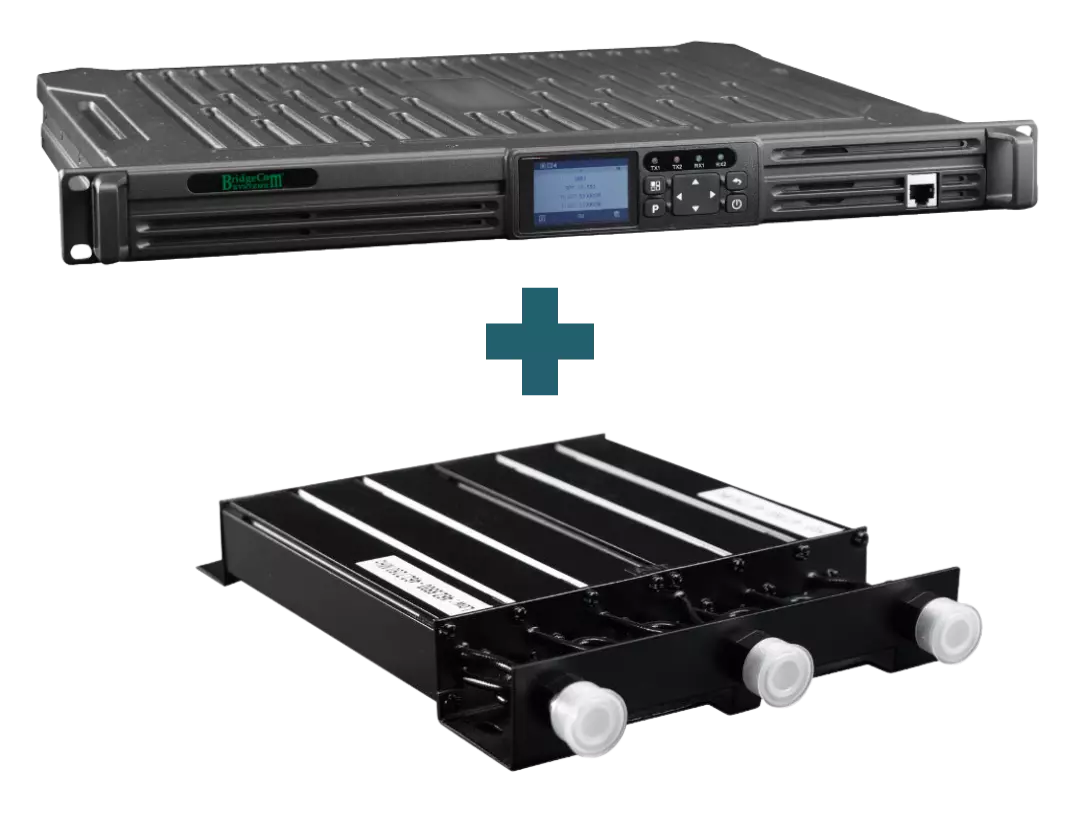

Reliable, High-Performance GMRS Repeater with Wide/Narrow Band Operation PLUS included pre-tuned Duplexer!

Take your GMRS communication to the next level with the BridgeCom Systems BCR-GMRS Repeater. This professional-grade repeater is FCC Part 95E certified and engineered for reliable, long-range operation, 8 fixed GMRS main repeater channels.

Built for both wideband and narrowband operation, the BCR-GMRS combines rugged dependability with user-friendly controls and flexible connectivity — all in a slim 1U rackmount design that’s ideal for base stations, towers, or equipment racks.

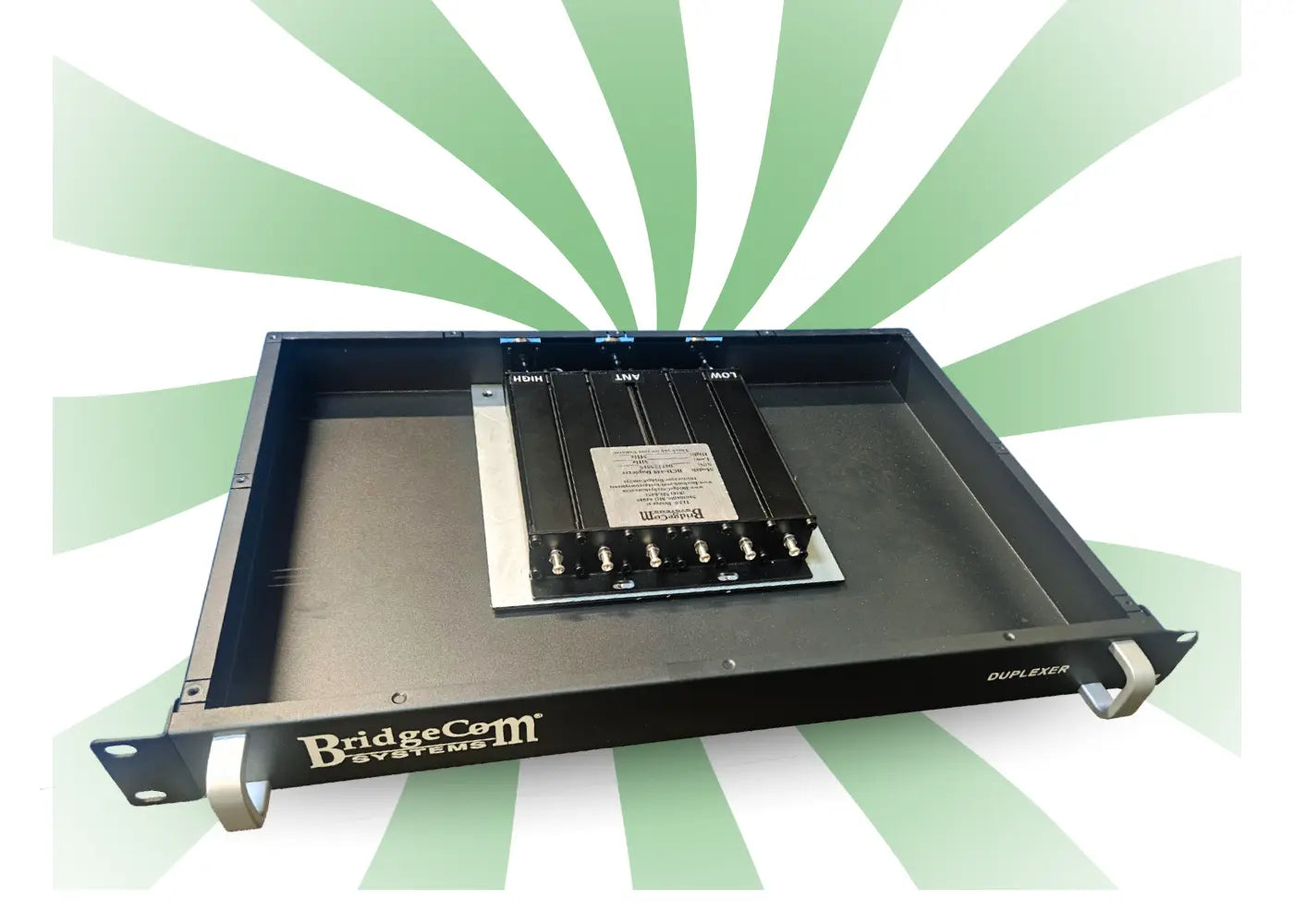

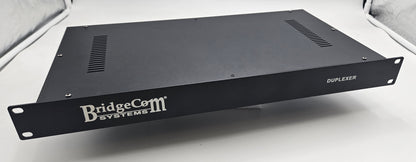

Included duplexer comes pre-tuned and has its own 1u rack for easy installation.

* Equipment rack not included.  Sold Separately

Technical Specifications

Parameter Specification
Model BCR-GMRS
Frequency Range 462–467 MHz (GMRS)
Channels 8 fixed GMRS repeater channels
Bandwidth Wideband / Narrowband selectable
Power Output Low 5W, Medium Low 10W, Medium High 30W, High 50W
Operating Voltage 100/240VAC (with 13.8VDC backup)
Audio Output Internal 2W 8 Ω speaker
Connectors Type N Female, 25-pin accessory
Control Interface Front panel keypad, PC software
Tone Options CTCSS, DCS, CWID PC programmable
Form Factor 1U 19” rackmount, 19” × 14” × 1.75”
Cooling Internal fan
Certifications FCC Part 95E, Part 15

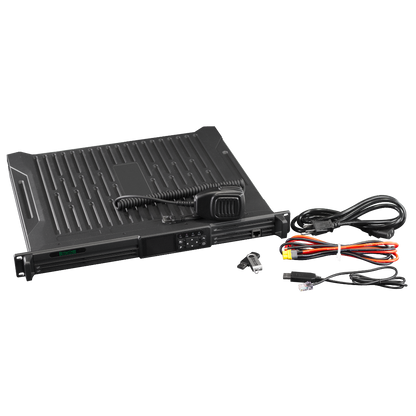

What’s Included!
  • BridgeCom Systems BCR-GMRS Repeater
  • Standard hand microphone
  • A/C and D/C Power cables
  • User manual
  • 2-Year manufacturer warranty
  • Windows PC Programming Software
  • Duplexer already set up to work with your GMRS repeater
  • 1U duplexer chassis
  • Includes qty. 2 , two foot jumpers
Why Choose It?

Perfect for...

  • Family and Neighborhood Repeaters
  • GMRS Community Networks
  • Off-Road and Overlanding Groups
  • Ranch, Farm, and Rural Communication Systems
  • Crews and Teams
Key Features

Key Features

  • 🔒 FCC Part 95E Certified for GMRS
    Fully compliant for legal GMRS operation — ready for community, family, or emergency use.
  • 📡 8 Fixed GMRS Main Repeater Channels
    Preconfigured with all 8 GMRS main repeater frequencies for quick setup and reliable coverage.
  • ⚙️ Wide and Narrow Band Operation
    Flexible channel bandwidth selection ensures compatibility with a variety of GMRS radios and systems.
  • 🧠 PC Programmable for CTCSS / DCS and CWID
    Easily configure transmit/receive tones, and station identification using intuitive PC software.
  • 🎛️ Slim 1U Rack Mount Design
    Compact, professional form factor fits seamlessly into standard 19-inch equipment racks for fixed installations.
  • 🔊 Built-In Internal Speaker
    Convenient local monitoring and testing directly from the repeater front panel.
  • ⌨️ Front Panel Keypad Controls
    Simple access to key functions for channel selection, volume control,  power output and display setup.
  • 🎙️ Standard Microphone Included
    Connect and communicate instantly — ideal for quick testing and direct transmit operation.
  • ⚡ A/C Power with D/C Battery Backup
    Continuous reliability with automatic failover to backup power in case of outages.
  • 🔌 25-Pin Female Accessory Connector
    Provides flexible integration with external controllers, linking systems, and accessories.
Resources

GMRS Repeater Owner's Manual
