Do you need a small compact duplexer for your amateur or commercial repeater system?

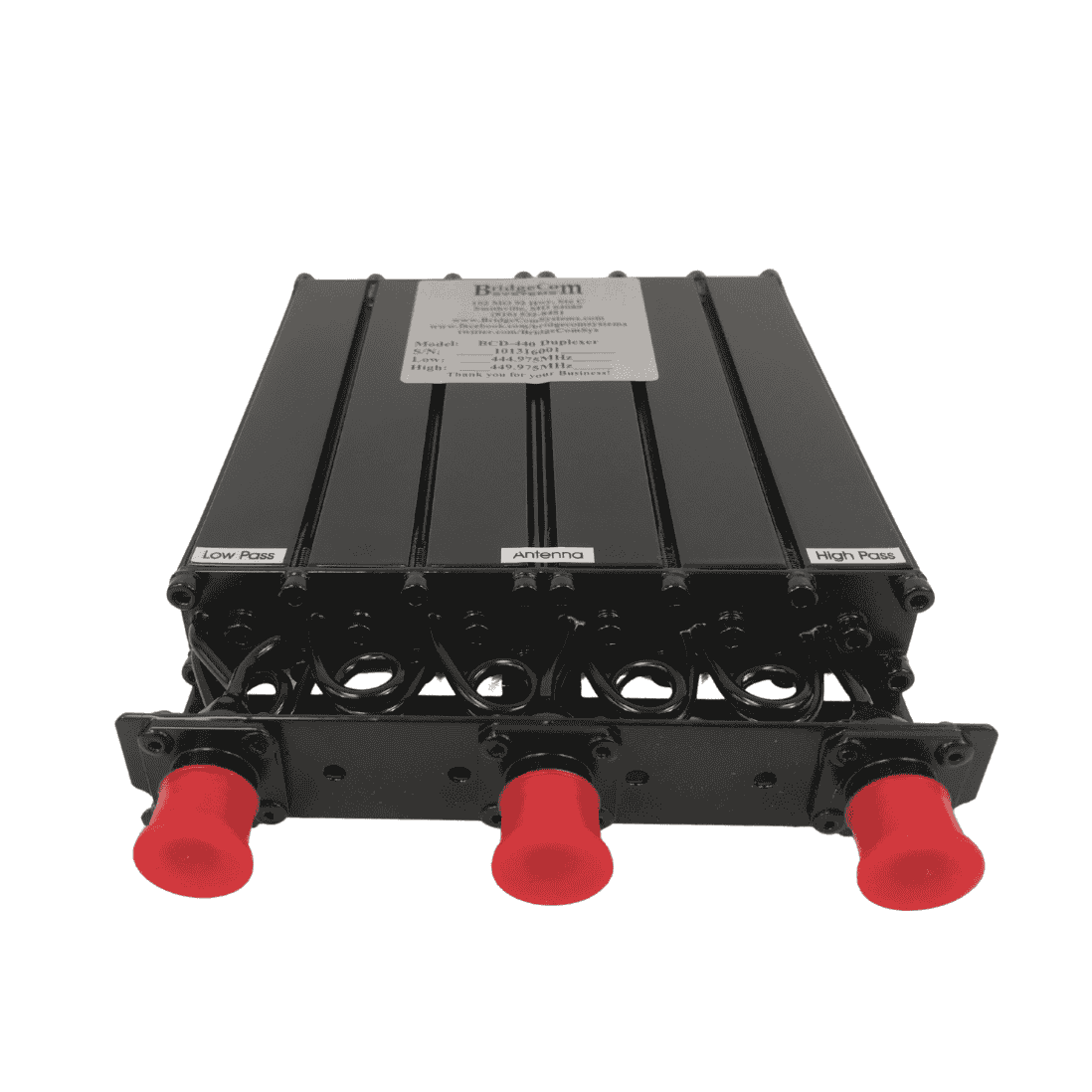

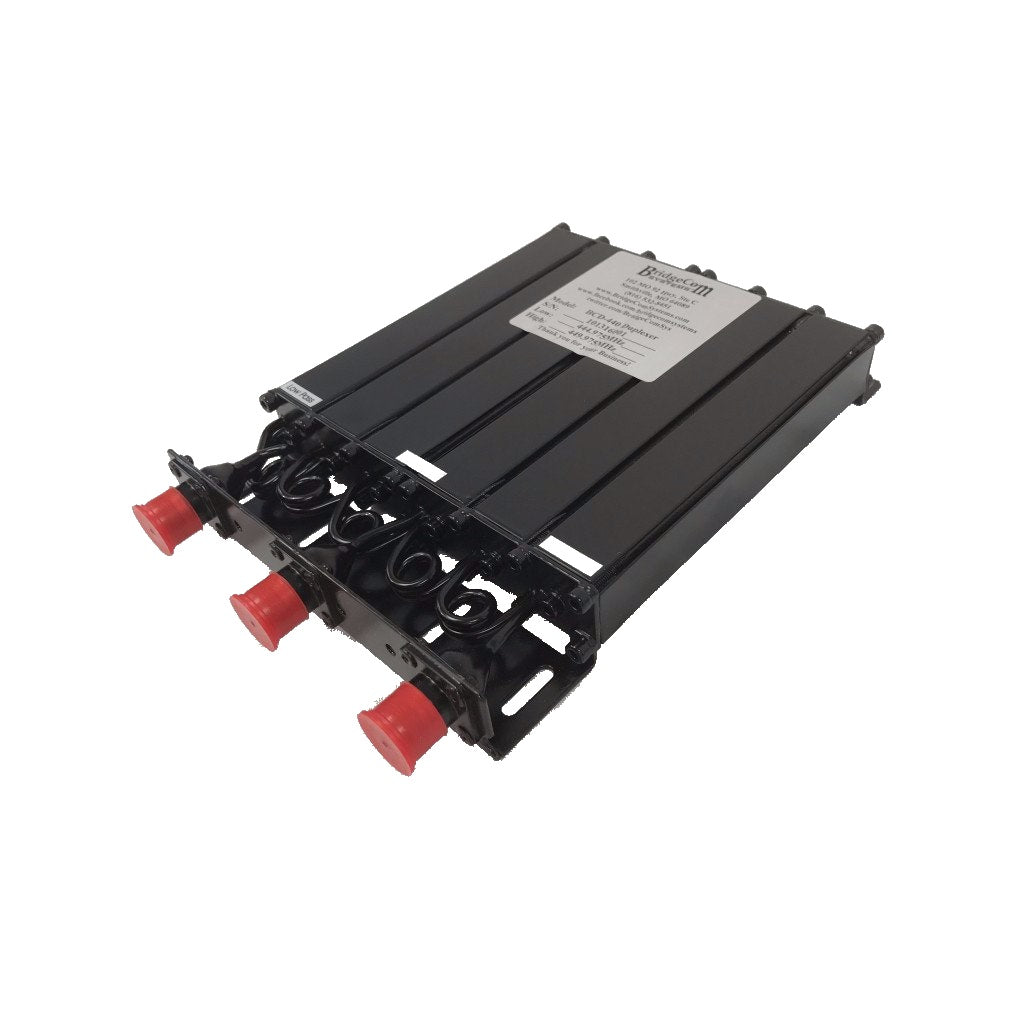

Introducing the BridgeCom Systems' BCD-440 duplexer. If you want a quality duplexer and no desense, look no further. The BCD-440 is the best mobile style duplexer on the market, You'll rest easy knowing you have a quality built duplexer handling your repeater needs.

The BCD-440 is built around a mobile type six cavity chassis boasting an impressive 80 dB isolation. It requires 5-8 MHz of frequency spacing and will handle up to 50W. When you order a BCD-440 it comes tuned to your frequency ready for your application. Pick one up today with the optional jumper cabling kit.

Specifications:

BCD-440 Frequencies Available: 400-430 MHz, 430-450 MHz, 450-470 MHz, 470-490 MHz
Frequency spacing 5 - 8 MHz
Max Input Power: 50W
Insertion loss Rx and Antenna Port 1.5 dB
Rx isolation at Tx frequency: >80 dB
Tx Noise Suppression at TX Ant Port >80 dB
Ideal for full duplex and repeaters (50 W maximum)
Temperature compensation helical resonators
Resonator: plated copper tubing (UHF) and tinned copper helical (VHF)
Insulating material: teflon (VHF and UHF)
Low loss conformable cables
Shielding: extruded aluminum 6063-T5 templered
N Type Female connectors
Optional Cabling Kit - See RF Jumper Cable Collection
Dimensions: 30 x 156 x 232 mm (1.2 x 6.2 x 9.2 in)
Temperature: -30 to +60 C
Weight < 1.1 kg

Free Programming/Tuning included! Please specify your Frequencies in the order notes.

Chat with us online or give us a call us at (816)-532-8451 if you have any questions.

Click this link to view Klarna payments FAQ.

Please review our return policy here

"As low as "$27"/mo with ""Affirm"". "Learn more

$ 345.00 - $ 345.00

$ 345.00

$ 345.00 - $ 345.00

$ 345.00

We are trusted by

What you will get?

	BridgeCom	Others
Free $97 Training Course
5-Star American Based Tech Support
High-quality Versatile Commercial Grade Products
In-house Programming
Free Tuning
Expert Tech Community
Free Technical Consultation

650 repeater

I now have 2 of these duplexers. The first one I bought used from another repeater owner about a year ago. Both of them work great! Both of these are on GMRS repeaters. Now this issue of desence all I can say is the used one I bought has been on at least 3 different repeater systems and still works great has seen some use for sure! Now the bad part…the first duplexer the new one had to be sent back right away because of a tuning issue…Now Bridge-Com sent a new one right back tuned to perfect! Guys it doesn’t get better than this! A company that stands behind what they sell is a 5 star company all day long! If you have been in radios very long you understand what its worth…Dave

Wondering....

I tested the duplexer on my HP Spectrum Analyzer finding the curve distorted. While the two notches seemed okay, but overall curve was questionable. I think it was tuned quickly by some who was not very good at it.

Works as designed

Ordered the DCD-440 Mobile duplexer for a new repeater. The Bridgecom team turned it around in 4 short days. Can't best that!

Wow the Mobile-Type Duplexer BCD-440 UHF.

This is a really top notch duplexer works really well BridgeCom tuned it 100% my repeater is a motorola M1225 the antenna is DB-404 4 Bay antenna. Thank you again, BridgeCom I will definitely buy more from BridgeCom Jeff

BCD-400 UHF

I received my duplexer very quickly. The tune was spot on. Very easy to hook up. I had my repeater on the air in less than an hour after opening the box.
