BCD-440 UHF Mobile-Type Duplexer
BCD-440 UHF Mobile-Type Duplexer
Do you need a small compact duplexer for your amateur or commercial repeater system?
Introducing the BridgeCom Systems' BCD-440 duplexer. If you want a quality duplexer and no desense, look no further. The BCD-440 is the best mobile style duplexer on the market, You'll rest easy knowing you have a quality built duplexer handling your repeater needs.

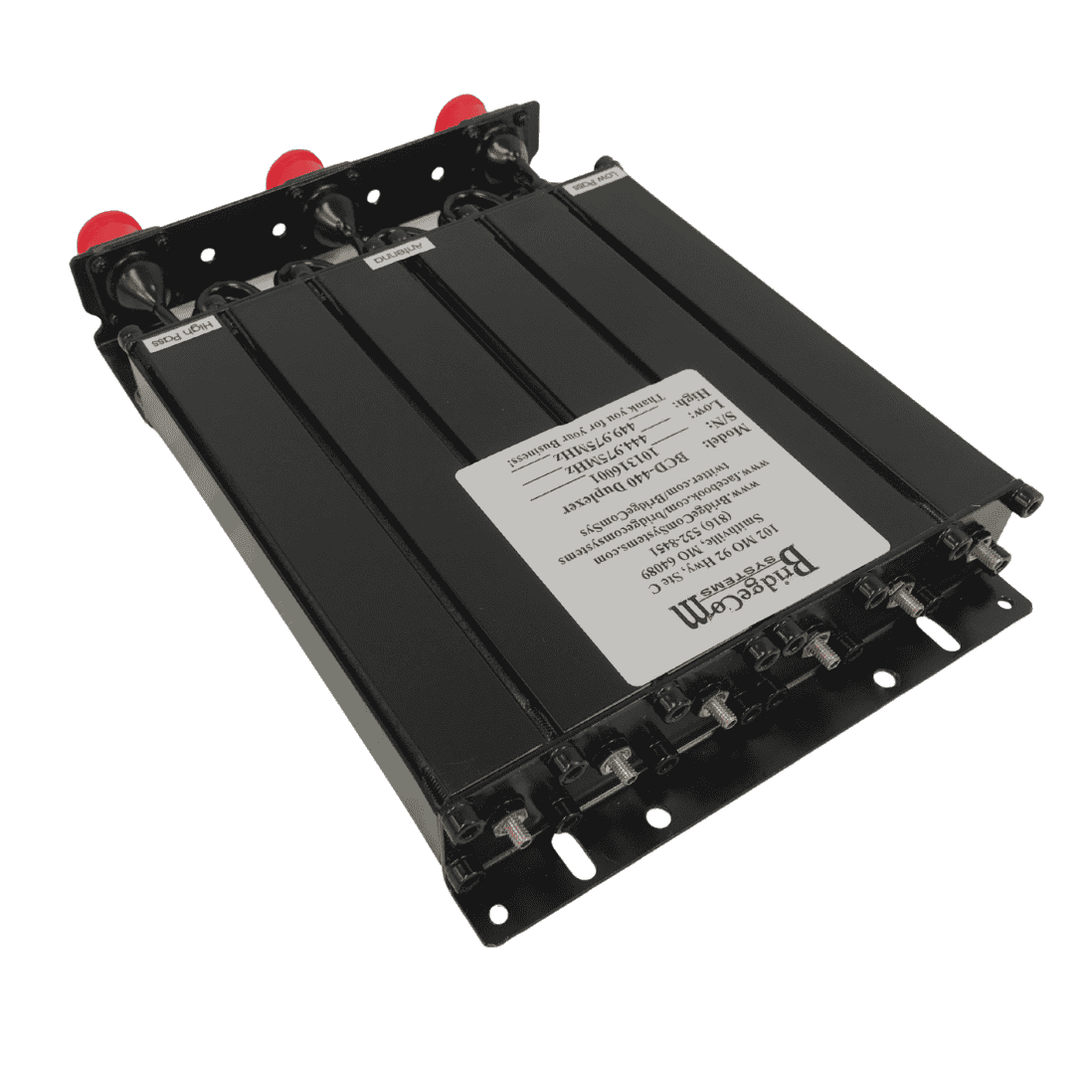

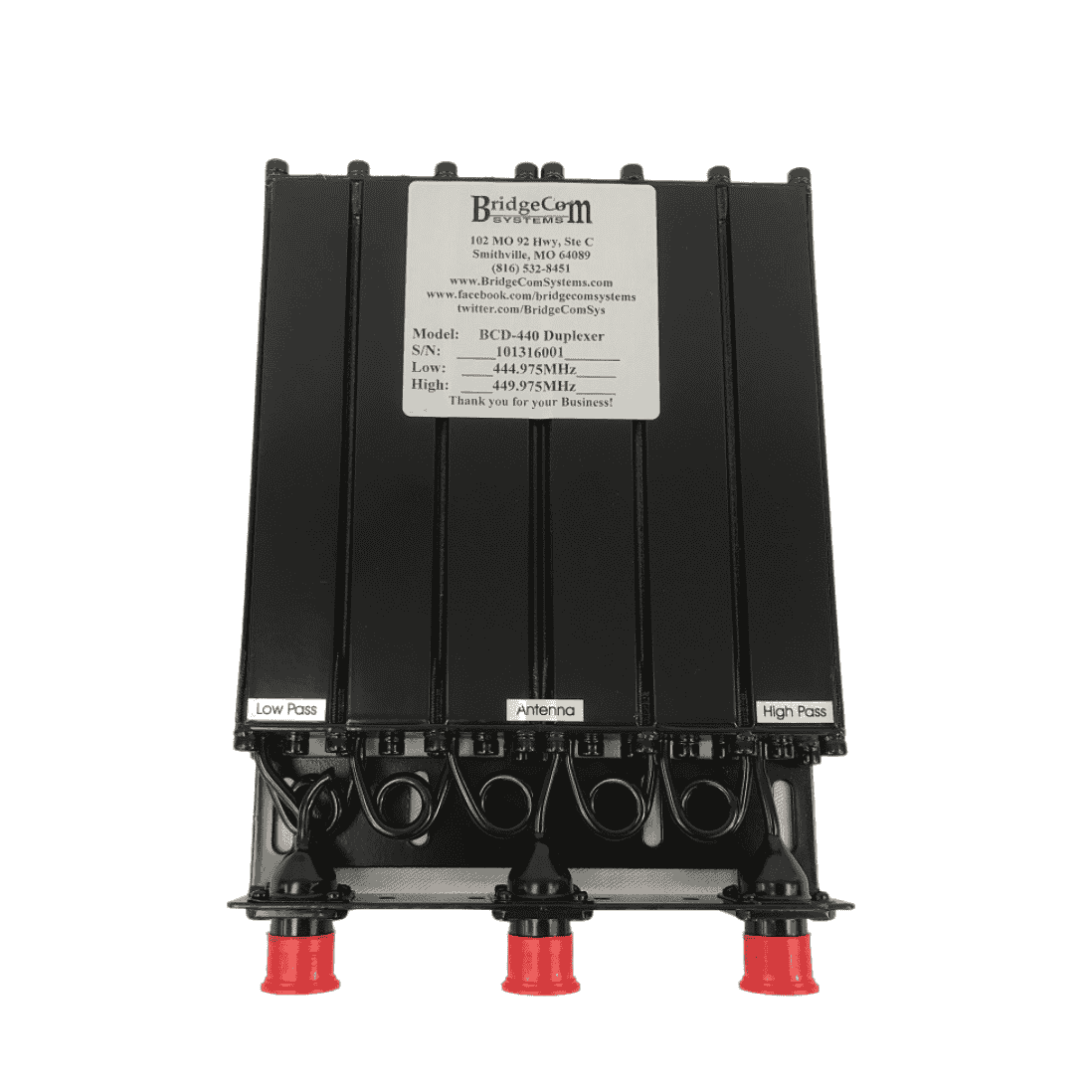

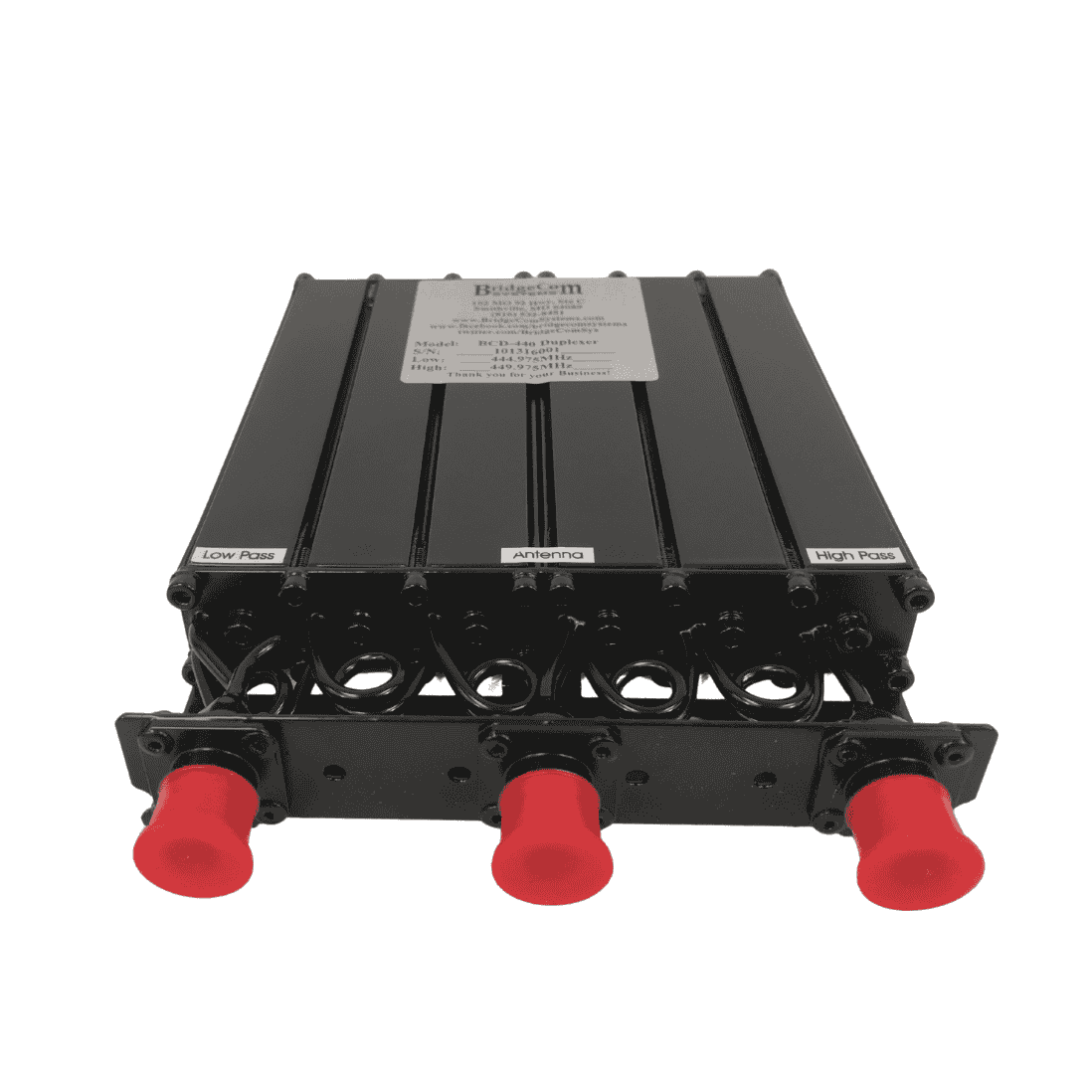

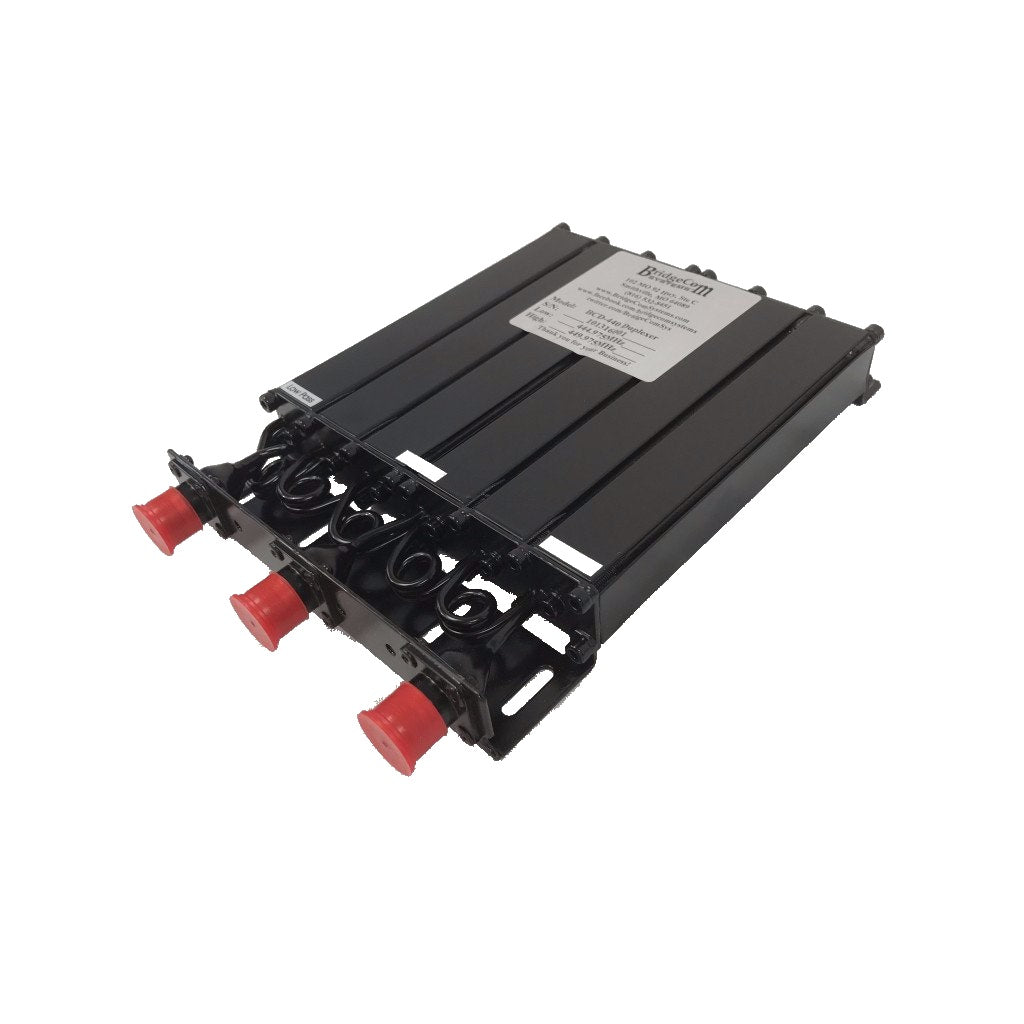

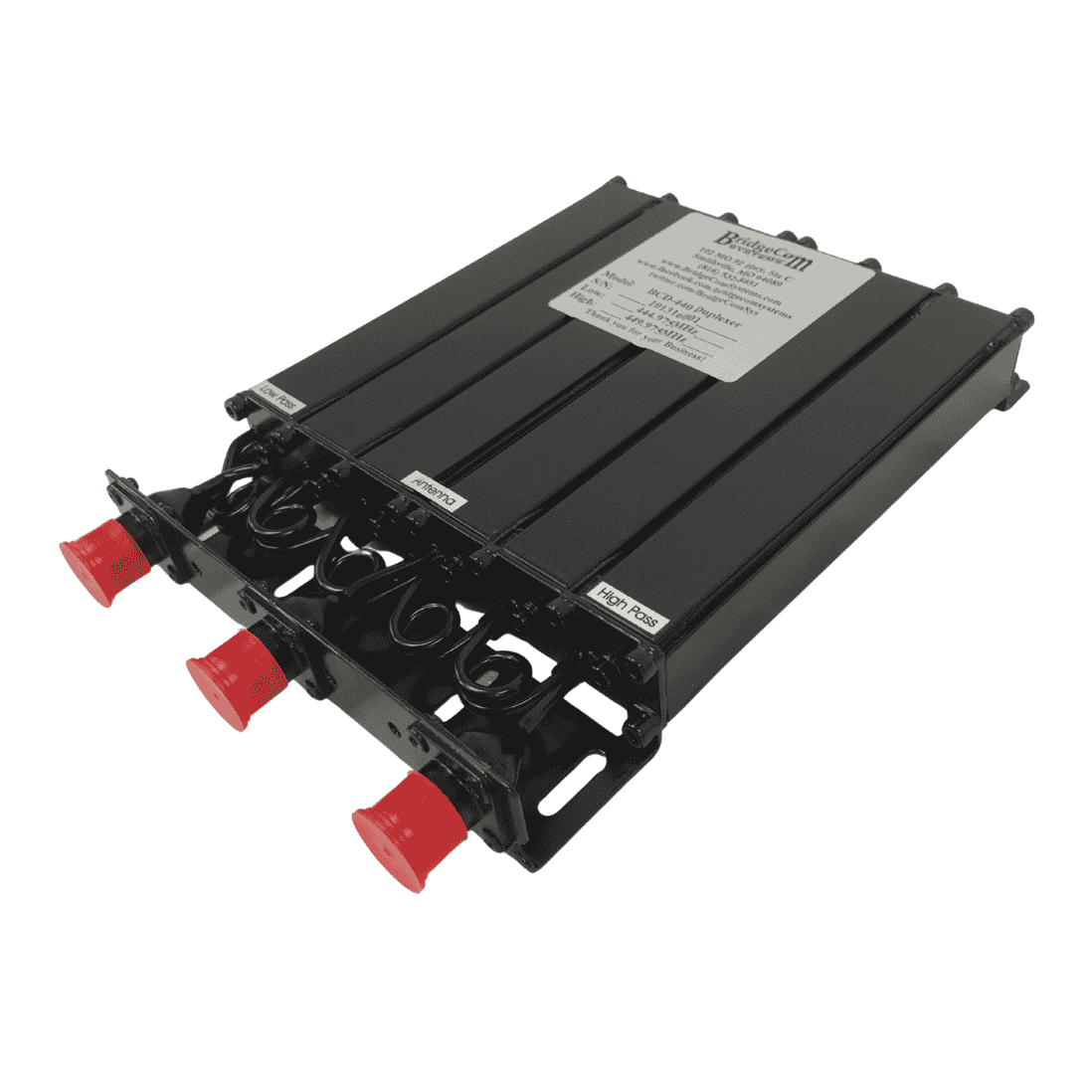

The BCD-440 is built around a mobile type six cavity chassis boasting an impressive 80 dB isolation. It requires 5-8 MHz of frequency spacing and will handle up to 50W. When you order a BCD-440 it comes tuned to your frequency ready for your application. Pick one up today with the optional jumper cabling kit.
Free Programming/Tuning included! Please specify your Frequencies in the order notes.
| BCD-440 Specifications | |
|---|---|
| Frequencies Available | 400-430 MHz, 430-450 MHz, 450-470 MHz, 470-490 MHz |
| Frequency Spacing | 5 - 8 MHz |
| Max Input Power | 50W |
| Insertion Loss (Rx & Antenna Port) | 1.5 dB |
| Rx Isolation at Tx Frequency | >80 dB |
| Tx Noise Suppression at TX Ant Port | >80 dB |
| Use Case | Ideal for full duplex and repeaters (50 W maximum) |
| Resonators | Temperature compensation helical resonators |
| Construction | Plated copper tubing (UHF), tinned copper helical (VHF) |
| Insulating Material | Teflon (VHF and UHF) |
| Cable Type | Low loss conformable cables |
| Shielding | Extruded aluminum 6063-T5 templered |
| Connector Type | N Type Female connectors |
| Optional Accessories | Cabling Kit – See RF Jumper Cable Collection |
| Dimensions | 30 x 156 x 232 mm (1.2 x 6.2 x 9.2 in) |
| Operating Temperature | -30 to +60 °C |
| Weight | < 1.1 kg |
Need help choosing or understanding your duplexer? Fill out the form below — our team’s got you covered.
Why Choose It?
Regular price
$345.00
Couldn't load pickup availability
Get help buying Contact Tech Support or call (816) 532 8451
