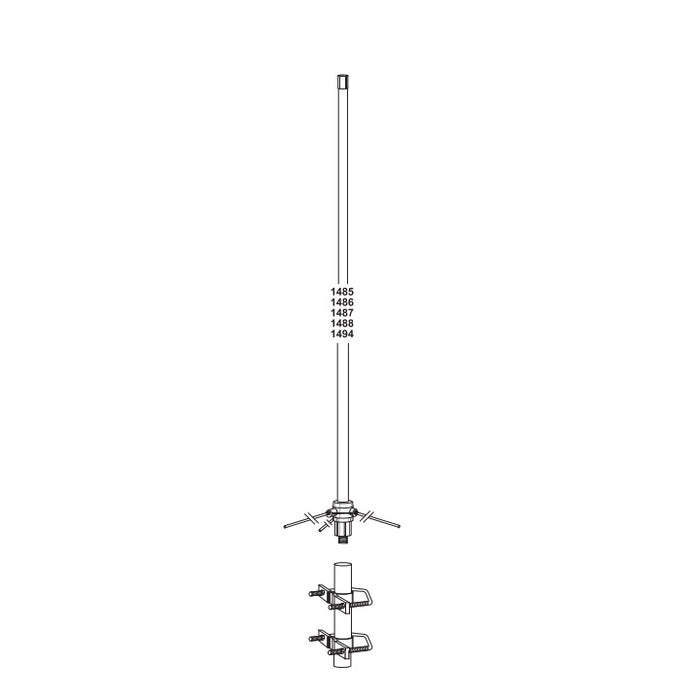

Tram-Browning Fiberglass UHF (70cm) Base Antenna - Model 1486
A great antenna at a great price!
- High performance 200W power rating
- Low SWR, Broad banded
- The radiator and coil are hermetically sealed in fiberglass tubing to assure low SWR in all weather.
- DC ground construction allows static dissipation for low noise ratio and maximum lightning protection.
- Vertical polarization with 50 ohms impedance.
- Mast diameter is 1 3/16" to 2 7/16" (30-62mm).
- UHF (SO-239) Connector.
- Includes mounting bracket with stainless steel hardware.
- 6.5 dBd gain
- 20 MHz Band Width
- 5' 3" (1.6m) tall
- Single Section
- 7" (19.5cm) Radials
- 5/8 wave 3 elements
- Max wind 135 MPH (60m/sec)
- Cutting Chart
