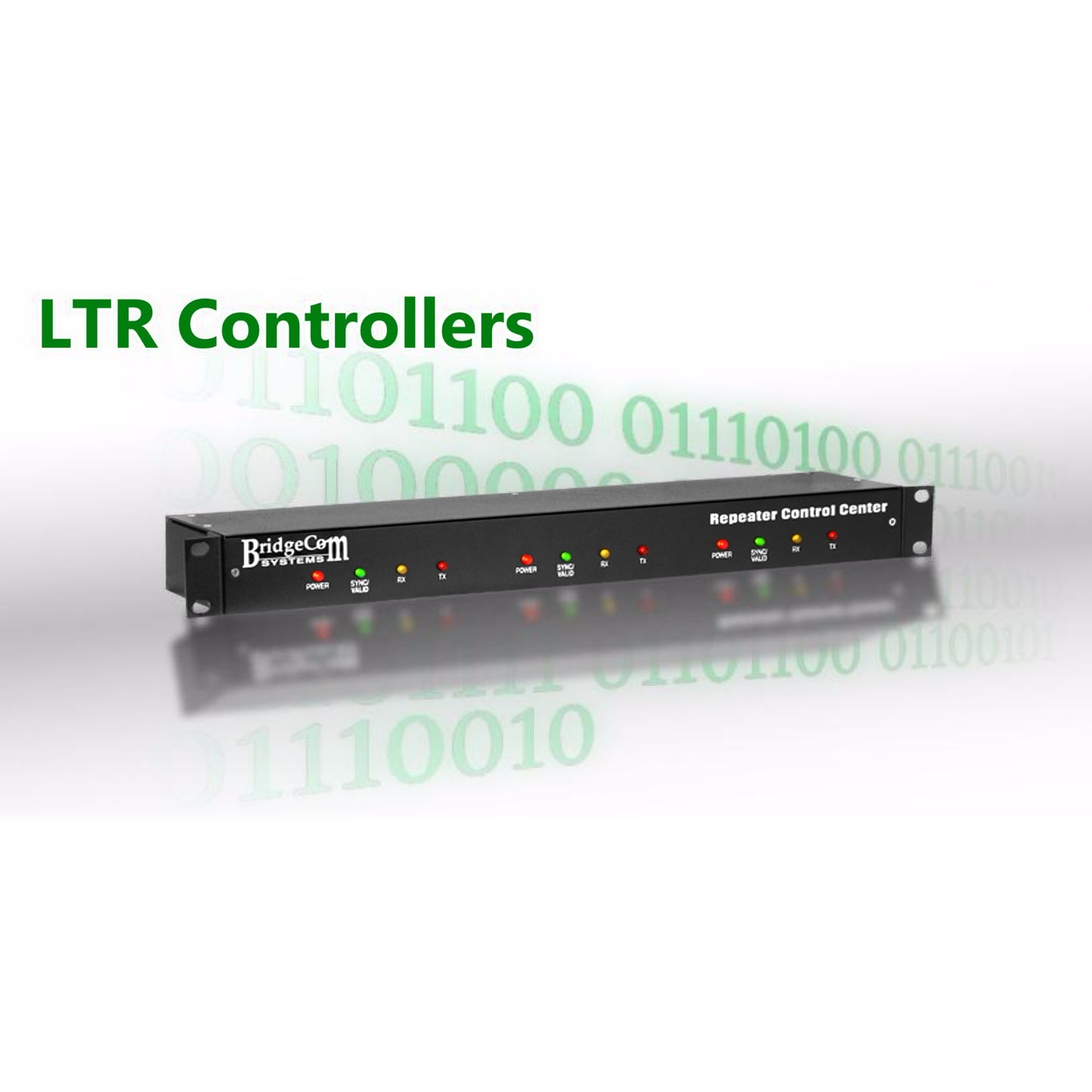

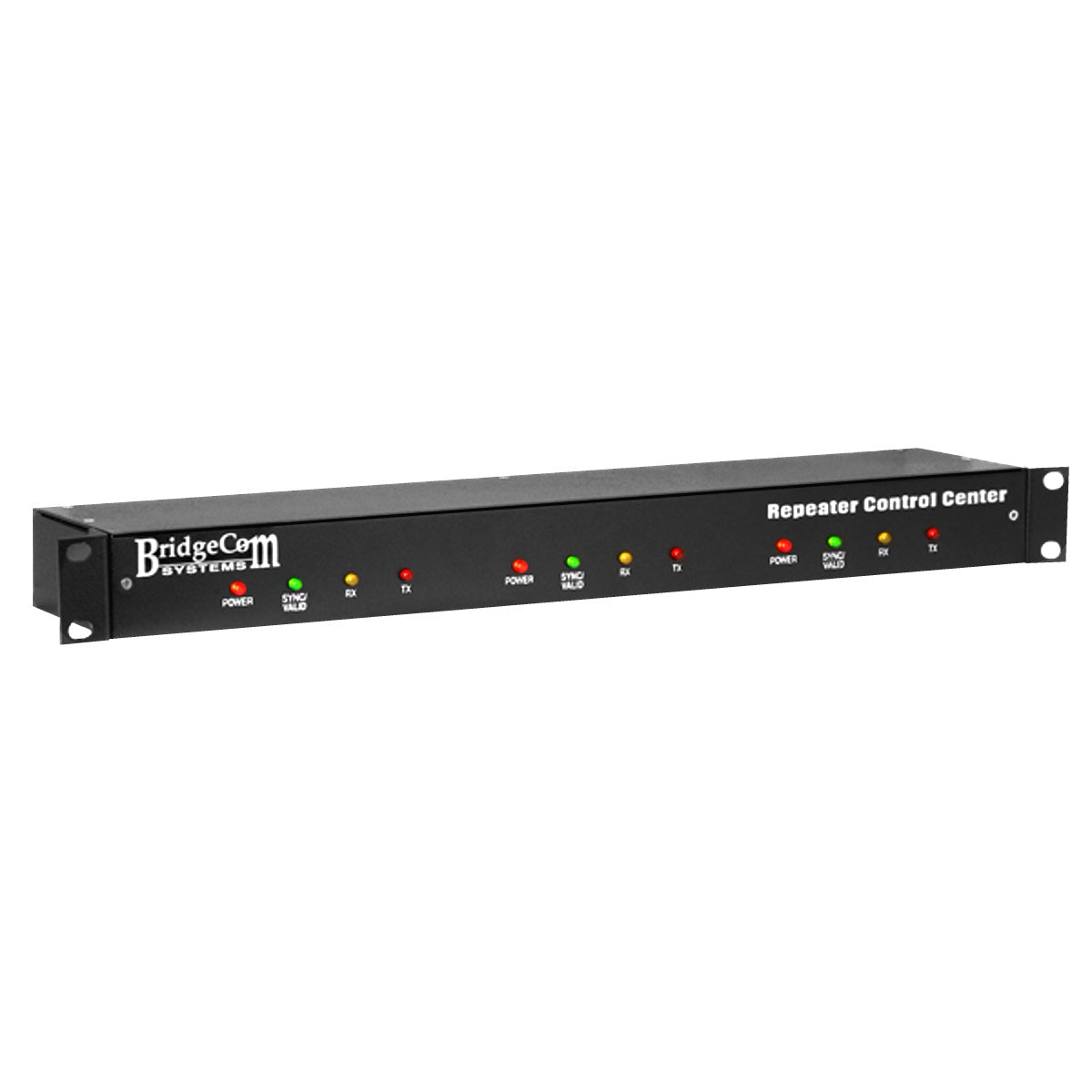

TL-NET LTR/Conv Controllers

The TL-NET LTR trunking dispatch controllers are the smallest and simplest LTR and LTR Wide-Area Networking controllers on the market. They are also a drop in replacement for Trident Raider Controller. Each controller is the size of a 3 X 5 card and three can be placed side-by-side in a 1U chassis, saving valuable rack space. Each controller can be used in a network or non-network function and has a two year warranty.

Controller Features

• Drop in replacement for Trident Raider
• Works with any repeater on the market
• LTR Dispatch. 20 repeaters per system, 250 group IDs per controller
• Easy to program using Windows® based Control Manager software
• Air time logging and real-time system monitoring
• ID validation - If group ID is invalid, handshake will not complete
• Built-in CWID
• Valid repeater array. Safely trunk calls to valid repeaters for staged system/fleet upgrades
• Remote programming/maintenance via DTMF
• TL-NET controller allows for interfacing to the TL-NET Wide-Area Trunking System Gateway to link your sites with RoIP.
• The TL-NET system allows multiple repeater sites to be linked together, creating a wide-area trunking network

Controller Users Manual

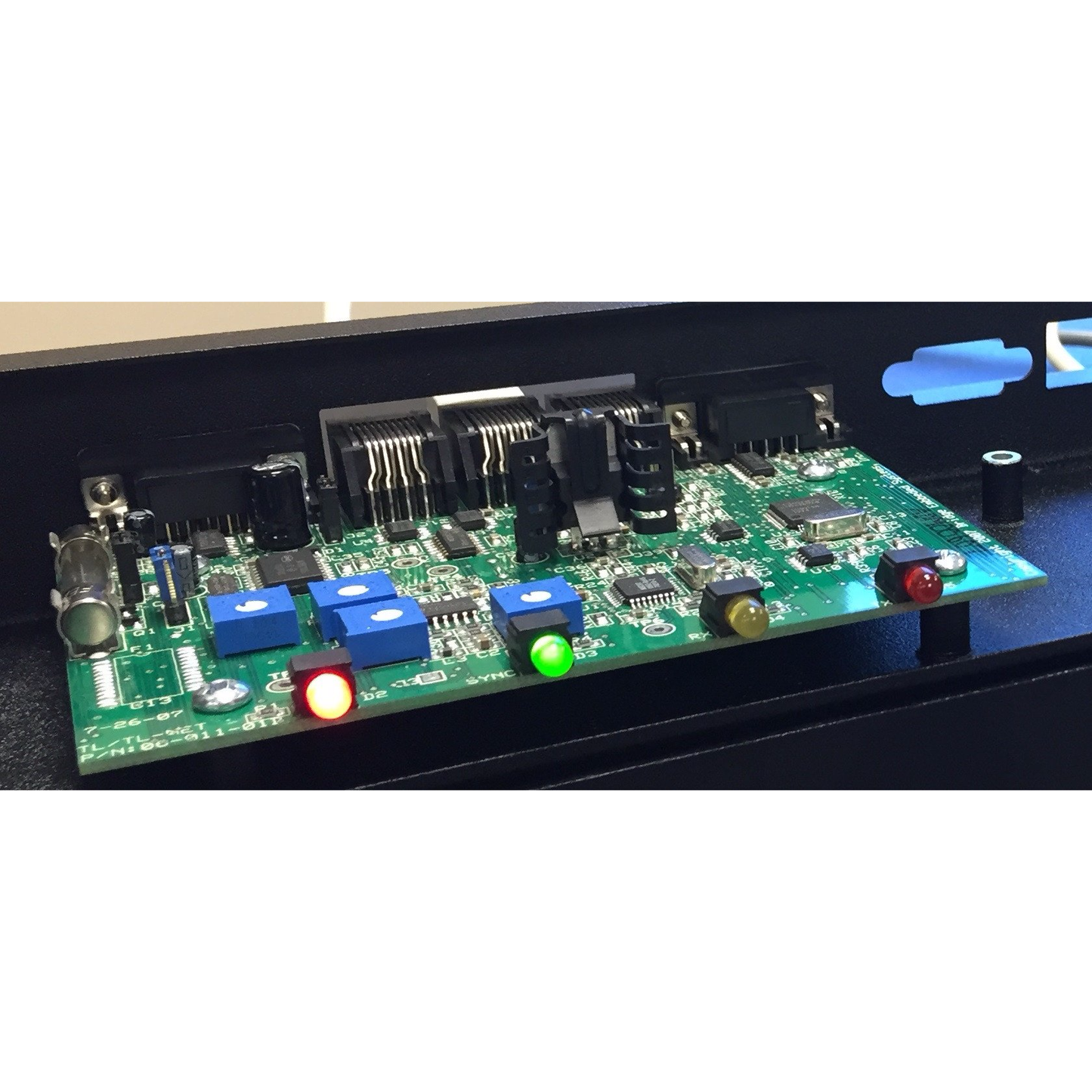

TL-NET Controller working with the Trident Raider on the same bus.

https://youtu.be/llHdvh2ekrA
