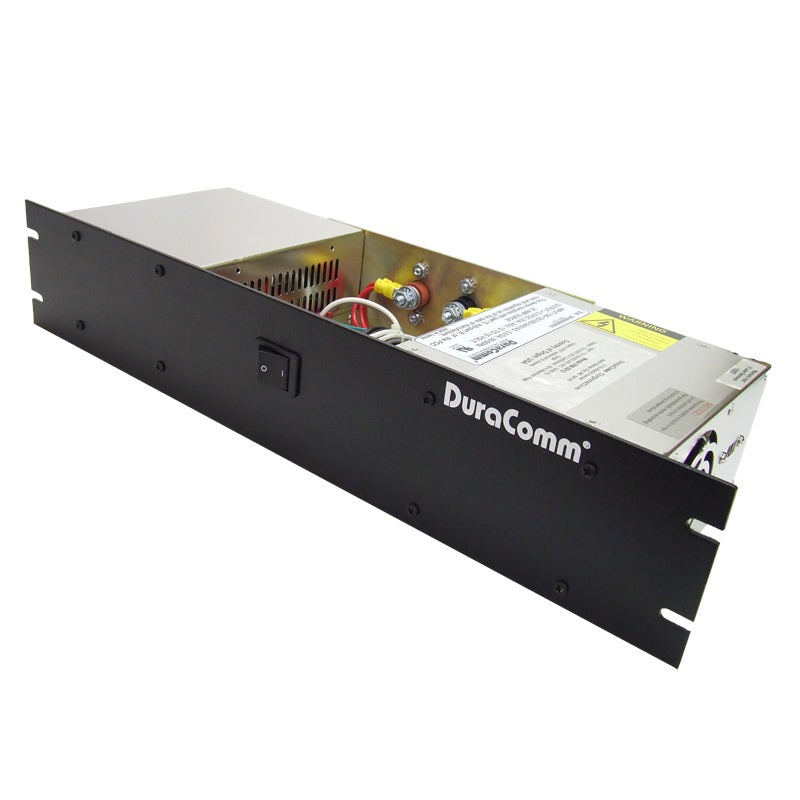

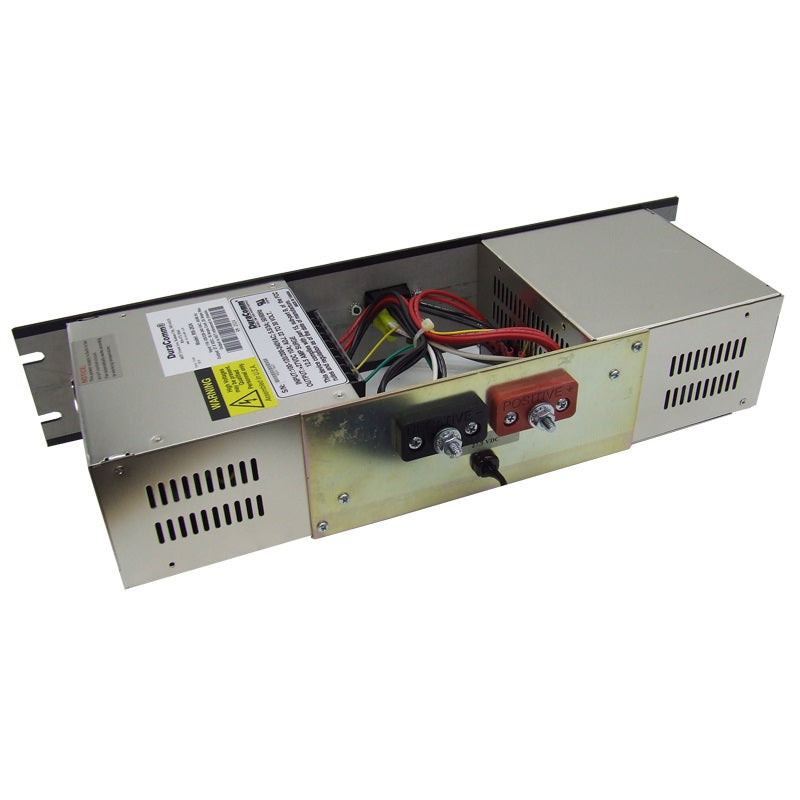

Duracomm RM-5012

The RM-5012 is a heavy duty AC to DC power supply with 80 percent efficiency -and has a selectable 110 of 220 VAC inputs with adjustable output voltage.

RM-5012 Specific Features

• Output current: 50A
• Output Voltage: 13.8VDC
• Input Voltage: 110 or 220 VAC
• Panel Height: 3.5" (2U)
• Weight: 9.5 lbs
• N+1 Redundancy

RM Series Features

• Proven Reliable Design

• Shallow mounting

• Battery backup isolation module available

• Open frame designs are not recommended for applications requiring ingress protection (IP)

• Systems use proven DuraComm “Power Block” switching modules

• Modular design provides N+1 redundancy for certain models

• Selectable 110 or 220 VAC inputs

• 19” width fits standard EIA rack

• Thermostatically controlled fans come on only when needed, extending fan life

• 80% typical efficiency means low heat output and low power costs

• Selectable metering option available measures voltage output and individual module current (models with “M” suffix)

• Output voltage is adjustable

• Dual Schottky diodes provide protective isolation and seamless transfer to battery when power goes down - No relays to fail

• Handles up to 50 amps continuous and up to 60 VDC input

• Easy mounting on the back of RM Series power supplies

• Automatically provides float charge, battery maintenance when power is restored

• Includes mounting hardware and wiring

• Factory installation available if ordered with RM power supply

• Available with relay contacts for AC Fail (ACF models)
