Henry Radio UHF (70cm) Power Amplifiers
Henry Radio UHF (70cm) Power Amplifiers
General Specifications
| Emission: | FM (Class C) and limited digital modes. |
| Input/Output Impedance: | 50 ohms nominal |
| Connectors: | UHF, N, or BNC as required - others on request. |
| Insertion Loss: | Less than 1 dB with T/R relay. |
| Type Acceptance: | When used with type-accepted exciters - where applicable. |
| Harmonic Attenuation: | Better than FCC requirements at all power levels. |
| Duty Cycle: | Mobile packages- 50%--Repeater/Paging/Base - 100%. |
| Power Requirements: | +13.8 vdc nominal (negative ground). |
| Dimensions: | See chart below |
| Warranty: | 1 year, limited. |
| Transmit/Receive Relays: | Standard on mobile amplifiers, optional on repeater/base. |
| Cooling - Mobile: | Conservative heat sinks |

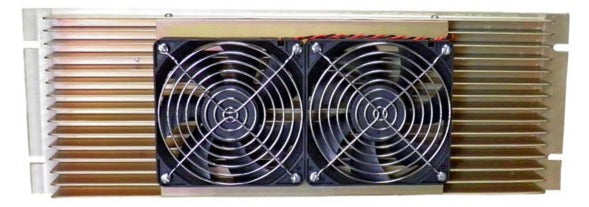

| Cooling - Repeater/Paging/Base: | Thermostat controlled fans. |
UHF (70cm) Power Amplifiers
| Model | Watts In/Out | Bandwidth | Mode | DC Volts/amps | Dimensions | Price |
|---|---|---|---|---|---|---|
| C100D02R | 2-100 Continuous | 5 MHz approx. | FM only | 13.8 vdc - 25 amps | 19"W x 6.25"H x 6"D | $995 |
| C100D10R | 10-100 Continuous | 5 MHz approx. | FM only | 13.8 vdc - 25 amps | 19"W x 6.25"H x 6"D | $950 |
| C100D30R | 30-100 Continuous | 5 MHz approx. | FM only | 13.8 vdc - 25 amps | 19"W x 6.25"H x 6"D | $895 |
| C200D02R | 5-200 Continuous | 10 MHz approx. | FM only | 13.8 vdc - 45 amps | 19"W x 6.25" H x 6"D | $1495 |
| C200D10R | 10-200 Continuous | 10 MHz approx. | FM only | 13.8 vdc - 45 amps |
19"W x 6.25" H x 6"D |
$1450 |
| C200D30R | 30-200 Continuous | 10 MHz approx. | FM only | 13.8 vdc - 45 amps | 19"W x 6.25" H x 6"D | $1395 |
Regular price
$1,225.00
