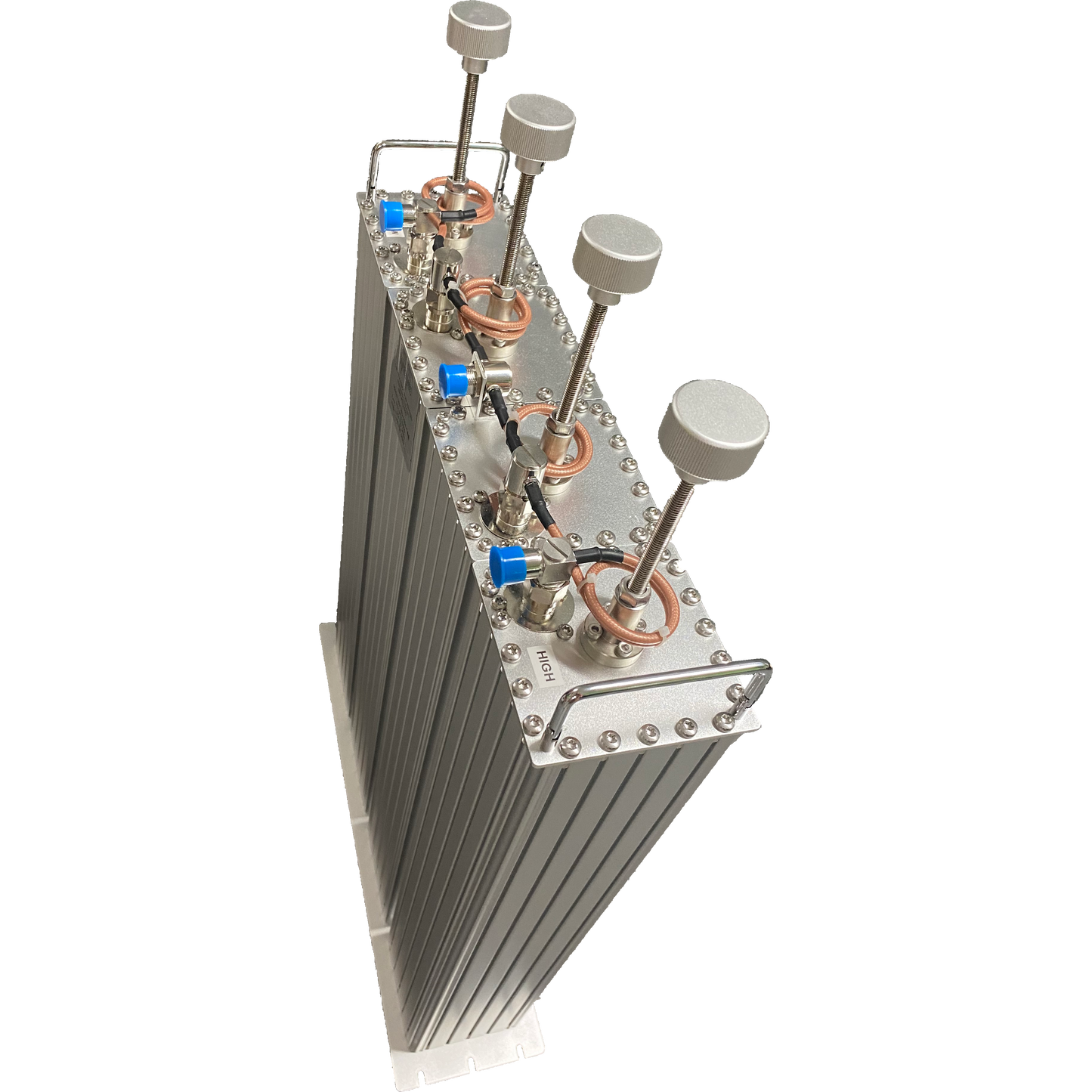

  • Close-up view of a BCD-144250 250W Amateur and Commercial Duplexer—a silver mechanical device with numerous bolts and components, featuring blue connectors, copper coils, and cylindrical elements. This intricate setup is designed to function for 144-174 MHz frequencies in both amateur and commercial applications.

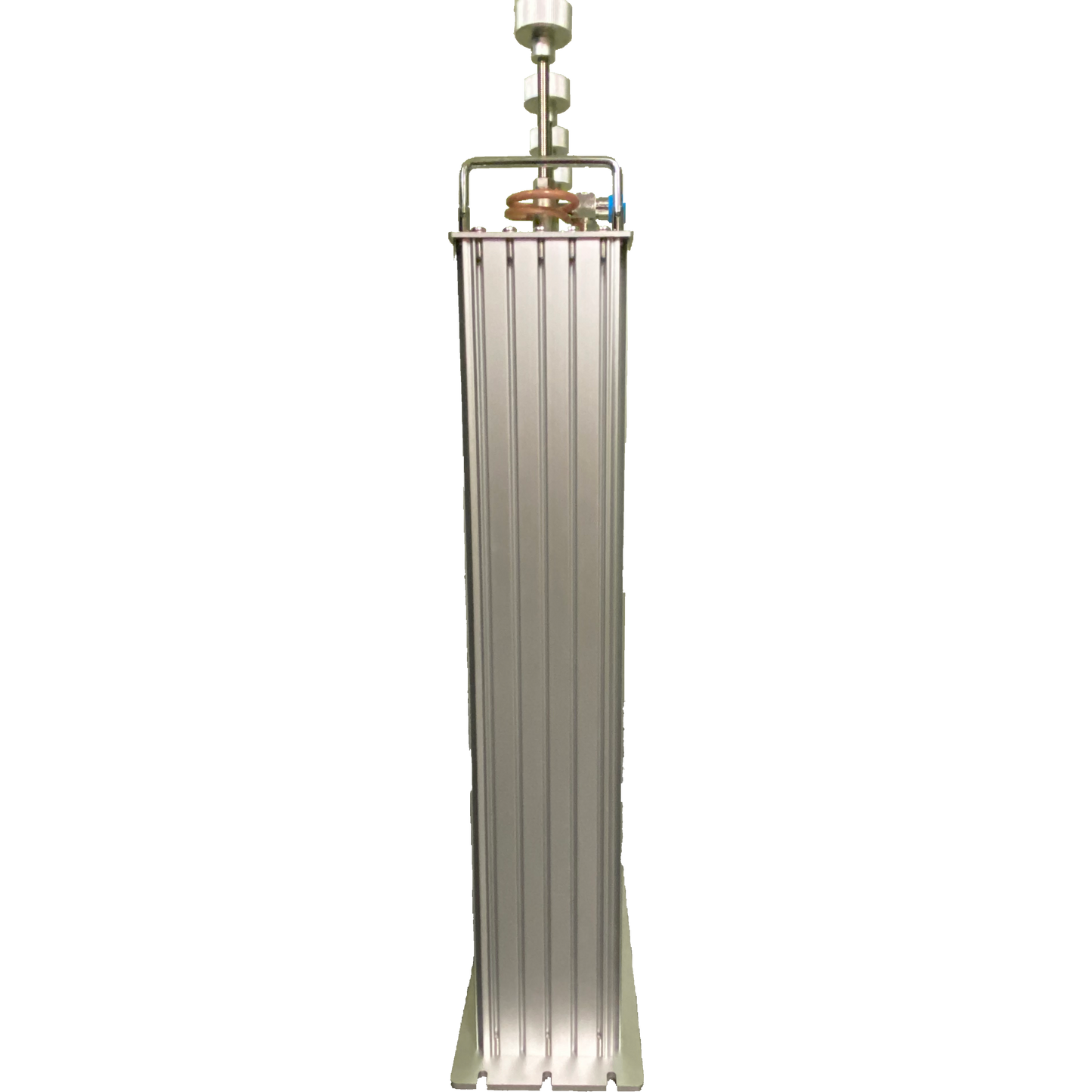

  • The BCD-144250 250W Amateur and Commercial Duplexer is a tall, rectangular silver industrial heater with vertical fins for heat dissipation, standing upright on a wide triangular base. It features a cylindrical component at the top secured by metal brackets, making it suitable for both amateur and commercial applications.

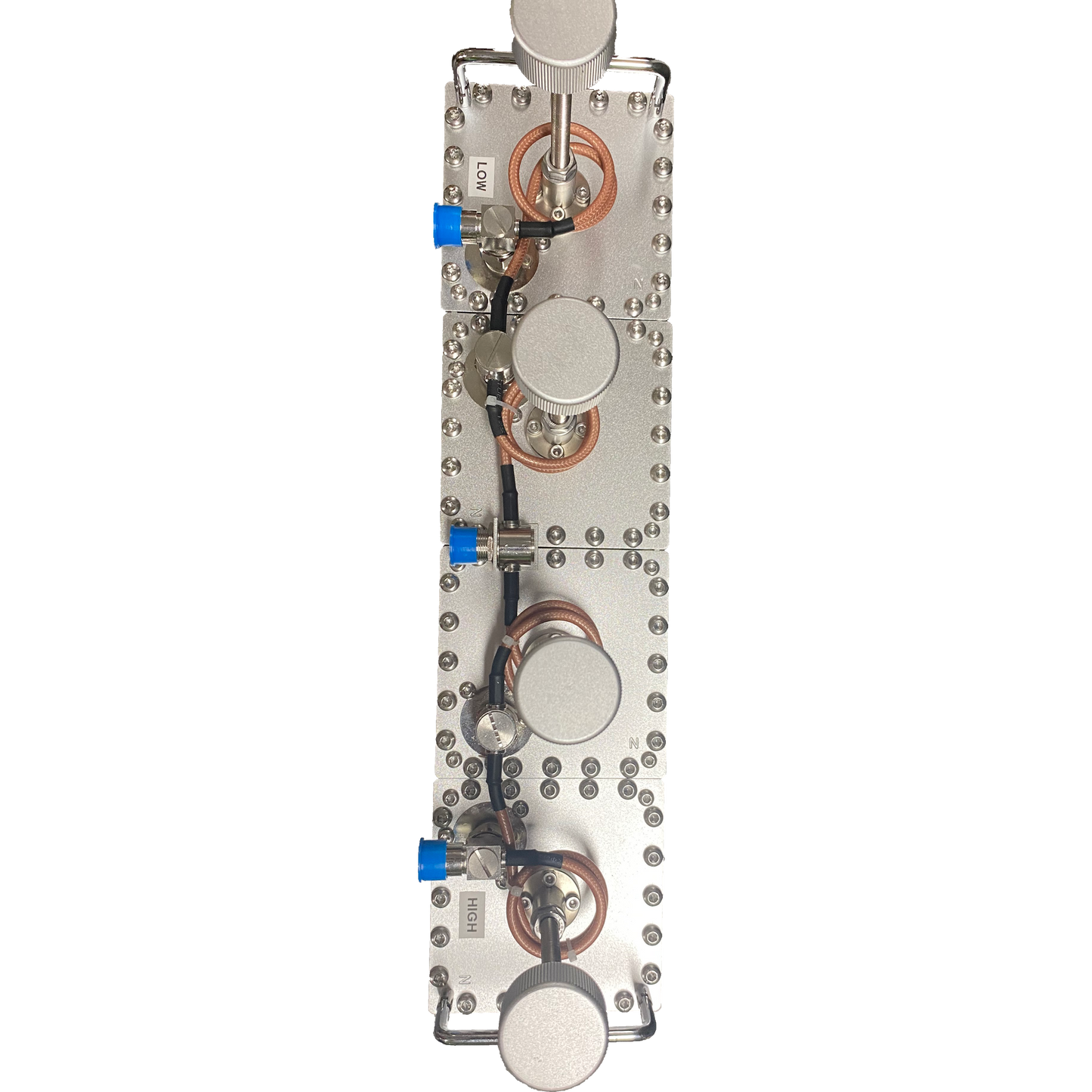

  • The BCD-144250 250W Amateur and Commercial Duplexer is a rectangular, metallic device featuring four cylindrical knobs on top, connected by coiled copper tubes. It operates within the 144-174 MHz range and has a ribbed exterior adorned with various bolts and valves, making it suitable for both amateur and commercial applications. The image background is transparent.

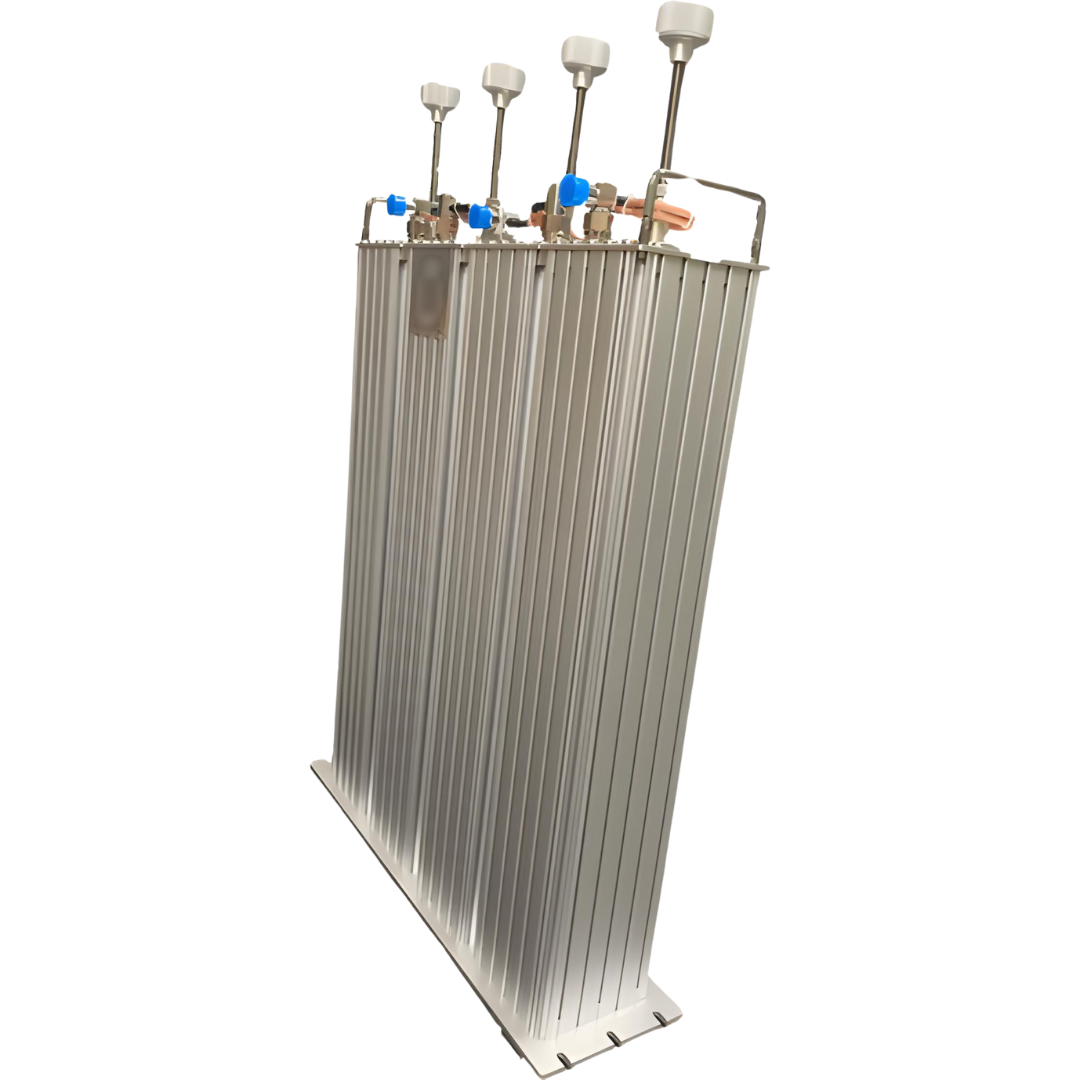

  • BridgeCom Systems BCD-144250 250W Amateur and Commercial Duplexer

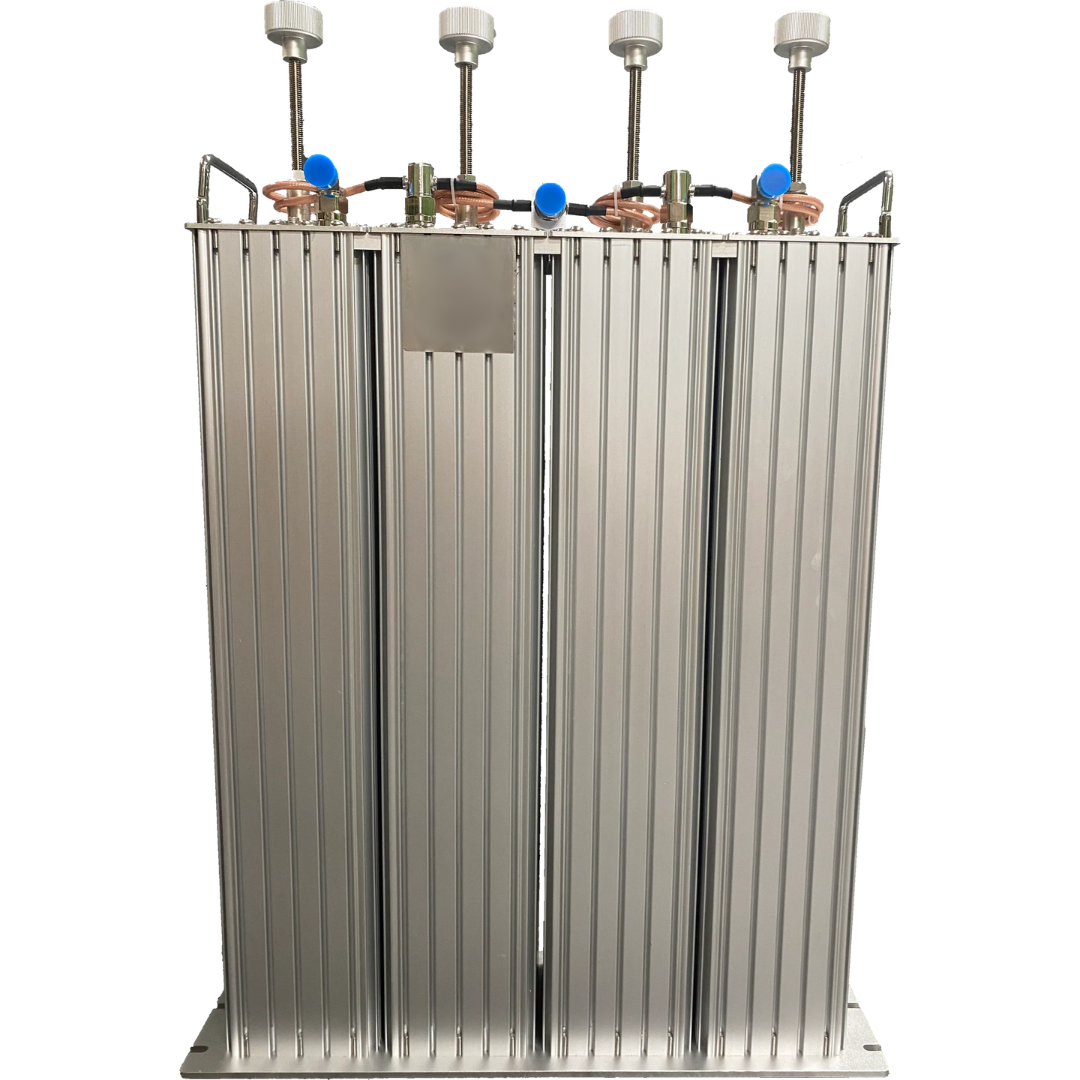

  • BridgeCom Systems BCD-144250 250W Amateur and Commercial Duplexer
1 8

BCD-144250 250W Amateur and Commercial Duplexer

BCD-144250 250W Amateur and Commercial Duplexer




BridgeCom Systems' BCD-144250 Duplexer for amateur and commercial applications. The BCD-144250 utilizes four high-quality cavities that results in uncompromising duplex isolation. It will handle up to 250W for the most demanding applications. Due to the right material choice and temperature compensated design temperature stability has been achieved.

  • For 144-174 MHz
  • Up to 250 W continuous input power
  • 90dB Isolation
  • Frequency Separation 0.6-15MHz
  • 19" Rack Mountable
  • 485 x 102 x 755mm (19.1 x 4 x 29.75 in)

Lead time is generally 1-3 weeks. If you need something sooner contact us

BCD-144250 Spec Sheet

View full details
$2,150.00
Save: $-2,150.00 Sold out

Get help buying Contact Tech Support or call (816) 532 8451
Secure payment Payment Icons
×

Customer Reviews

Based on 7 reviews
100%
(7)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
M
Moosehorn Amateur Radio Club
Flawless duplexer order for our club repeater!

We received our new duplexer just days after placing the order and put it into service right away. We have yet to do loss measurements but, so far, the cans seems to be performing as expected. We were very impressed with how fast BridgeCom Systems got the order to us!

J
James Rike Rike
Great products and service

JT is a great person to work with to get our repeat bought, purchased and delivered. His personal support is icing on the cake.

J
John Hjh55of Hilliard
New Duplexer

Duplexer replaced our 40-year-old unit. The new duplexer increased our range a great Deal.

J
John Canfield
Built like a tank

I didn't tune this so I can't comment on that aspect but the notch appears to be deep and narrow. Loss on transmit and receive is very minimal compared to the little 50 watt duplexer. Build quality is quite good and the unit was shipped in a wood crate with handles for ease of handling and to protect the unit.

It's relatively expensive but I think it's a good buy.
