BCR-220 (220 MHz) Repeater

$ 1,195.00

Lead Time: 1-2 Weeks

"Replaced my 220 repeater with a quality built Bridge Com repeater. This is a very well designed repeater and has great FM audio.
With all the other qualities built in the repeater design. Kudos to Bridge Com and gang for building a fine repeater."

- Ben C., BCR-220 Repeater Customer



ALL BCR REPEATERS AND DUPLEXERS ARE CREATED AND PRE PROGRAMMED TO YOUR SPECS AT NO ADDITIONAL CHARGE!

Looking to get into the 1.25m (220 MHz) band?  Struggling, with your current repeater, or lack thereof? Is your club or organization having issues with the system your currently using? Well don’t give up hope because we have the solution for you.

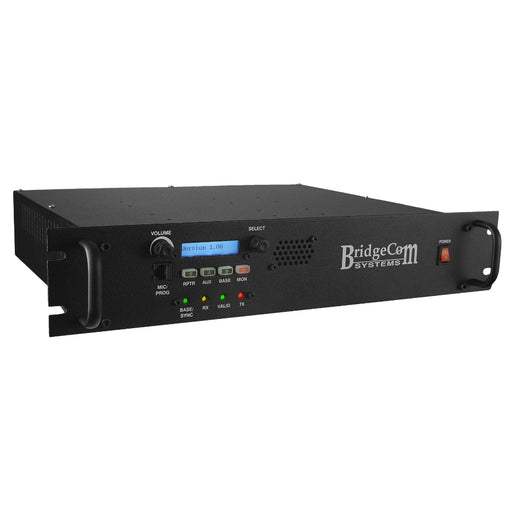

The BridgeCom Systems BCR-220 FM Repeater is built for amateur ham radio. It operates in 222-225 MHz 1.25m range of the RF spectrum. The BCR Repeater is a feature rich repeater/base station packed with loads of RF power and dual fans to run cool in the harshest environments. It is an excellent choice if you're considering a 220 repeater for your club or personal use. It is also an excellent choice for A.R.E.S./R.A.C.E.S. operation, and emergency management. Get on the 1.25m band today with a built in the USA BCR-220 repeater.

Question & Answer (Q&A)

QCan the 220 MHz repeater power a repeater controller? I know the repeater has 13.8 volt for battery backup but can i power the Arcom rc210 controller from that connection?

AYes, you can power an Arcom rc210 from the repeaters battery back up terminals.


Q - Are the duplexers you have for 220 MHz 150 watt capable?

AYes, the BCD220 duplexer can handle up to 150w.


Q - Does the 220 MHz repeater duplexer have N connectors?

AYes, the 220 repeaters and duplexer have N-type connectors.


Q - Is the insertion very low say 1.2 db or 1.5db?

A - The insertion is 1.4 db. So very low.


Features

  • 1.25m (222-225 MHz) - 30 Watts Continuous Duty
  • Digital Ready for Amateur Dual Mode (Digital/Analog)
  • Designed and assembled in the USA
  • 2 - year warranty

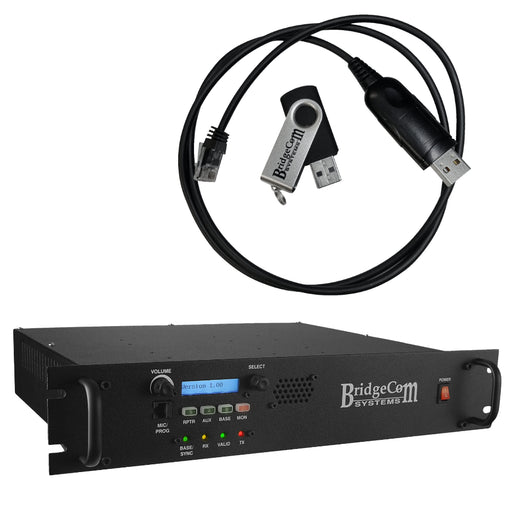

  • Windows® Based Programmer (Sold Seperately)

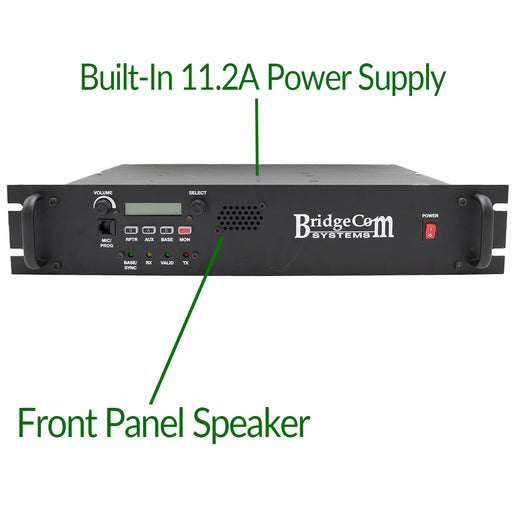

  • Built-In 11.2A Power Supply
  • Battery Backup with Built-in Charging Circuit

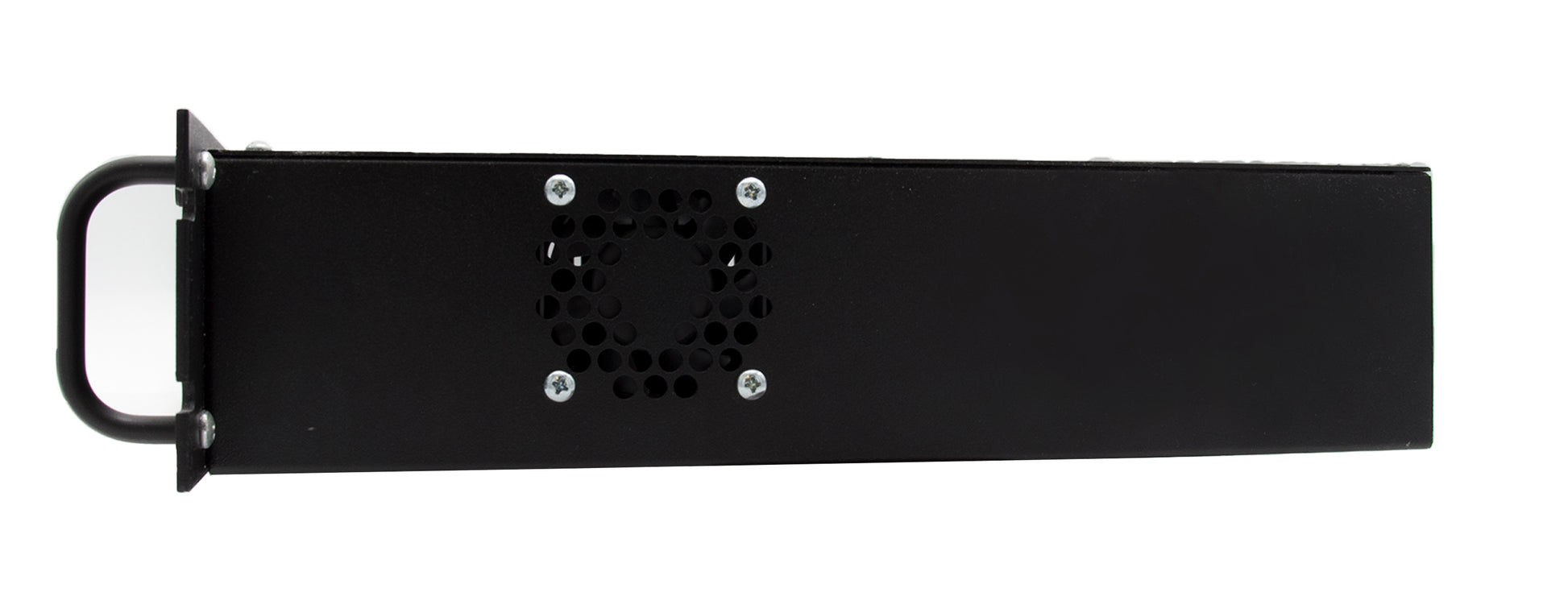

  • Dual Cooling Fans
  • Front Panel Speaker

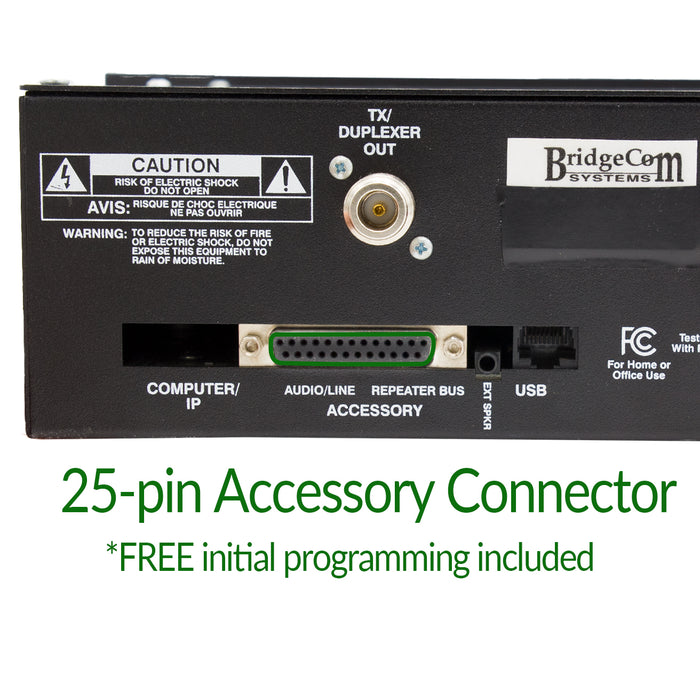

  • 25-pin Accessory Connector
  • Adjustable Squelch
  • 12.5 kHz/20 kHz Channel Spacing
  • Over-the-Air Programming and Maintenance via DTMF Tone Sequences
  • Built-in station CWID - Morse rate programmable 10-25 wpm
  • The MAX TX POWER when transmitting 30Watts is ~8 Amps
  • Quiescent draw is around ~250mA
  • FREE Initial Programming
  • Available with Duplexer (see dropdown menu)

When you place your order please include Tx/Rx Frequency, PL Tone In/Out, Station ID, Desired Transmit Output Power within the Special Instructions during checkout.

Read the BCR-220 review on eham.net

BCR Repeater Owner's Manual

BCR-220 Repeater Spec Sheet
