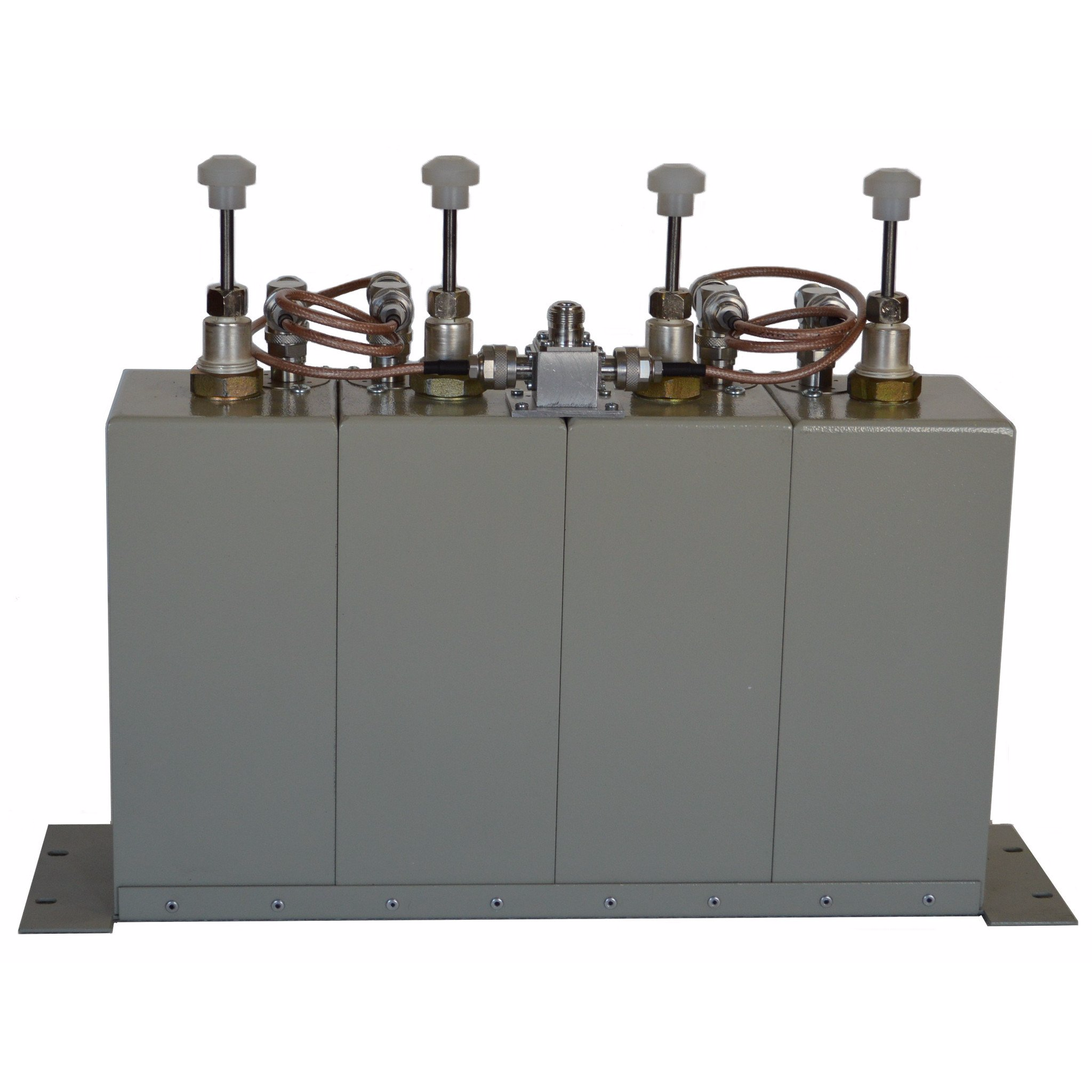

BridgeCom Systems BCD-440250 Duplexer

BridgeCom Systems BCD-440250 Duplexer for amateur and commercial UHF applications. The BCD-440250 utilizes four high quality cavities that results in uncompromising duplex isolation. It will handle up to 250W for the most demanding applications. Due to right material choice and temperature compensated design temperature stability has been achieved.

• For 400-470 MHz
• Up to 250 W input power
• 85 dB Isolation
• Frequency Separation 0.8-15 MHz
• 19" Rack Mountable
• 420 x 485 x 420 mm (16.5 x 19 x 16.5 in)

Lead time is generally 1-3 weeks. If you need something sooner contact us.

BCD-440250 Spec Sheet
