BCD-440150

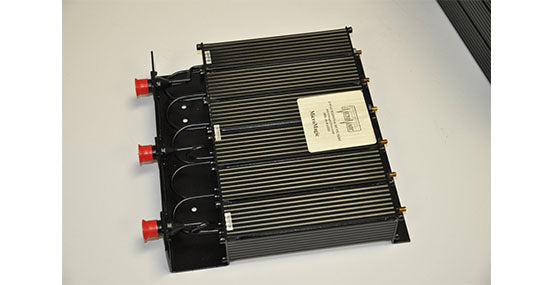

Duplexer BCD-44150 utilizes six high-Q notch-type coaxial resonators with 2”-cross-section that results in small geometry advantages without compromising duplex isolation. The duplexer is tunable within the operating frequency range.
MODEL |
BCD-44150 |
---|---|
Frequency spacing, MHz |
3-4; 4-5; 9-11; 11-15 |
Frequency range, MHz |
400-430, 430-450, 450-470, 470-490 |
Max. input power (continuous-duty), W |
150 |
Insertion loss RX-ANT, dB |
< 1,5 |
Insertion loss ANT-RX, dB |
< 1,5 |
RX isolation ANT-RX, dB |
> 80 |
TX noise suppression TX-ANT, dB |
> 80 |
Impedance, Ohms |
50 |
VSWR |
< 1:1,5 |
Mechanical |
|
Connectors |
N-female |
Temperature range, °C |
-30°...+60° |
Dimensions (HxWxL), mm |
55 x 252 x 260 |
Weight, kg |
< 2,5 |
